SWITCH, Overdrive Lockout, Tow and Haul: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

There is enough slack in the wire to pull out the connector from the lever.

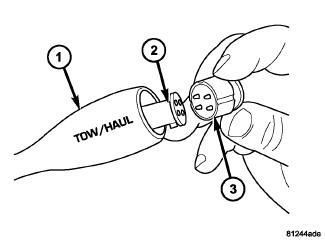

Fig 1: Installing Tow/Haul Overdrive Off Switch

Courtesy of CHRYSLER LLC

1 - GEAR SHIFT LEVER

2 - OVERDRIVE OFF SWITCH WIRING CONNECTOR

3 - OVERDRIVE OFF SWITCH

Pull the connector (2) out of the lever (1) just enough to grasp it.
CAUTION:
Be careful not to bend the pins on the tow/haul overdrive off switch. Use care when installing the switch, as it is not indexed, and can be accidentally installed incorrectly.
Install the tow/haul overdrive off switch (3) into the connector (2).
Push the tow/haul overdrive off switch (3) and wiring into the shift lever (1).
Install the tow/haul overdrive off switch retainer onto the shift lever.
