Holding Clutches: Description: Description
WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

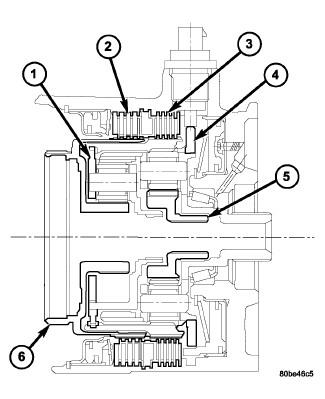

| 1 - FRONT PLANET CARRIER/REAR ANNULUS |
| 2 - 2/4 CLUTCH |
| 3 - L/R CLUTCH |
| 4 - REAR PLANET CARRIER/FRONT ANNULUS |
| 5 - REAR SUN GEAR |
| 6 - FRONT SUN GEAR ASSEMBLY |
Two hydraulically applied multi-disc clutches are used to hold planetary geartrain components stationary while the input clutches drive others. The 2/4 (2) and Low/Reverse (3) clutches are considered holding clutches and are contained at the rear of the transmission case. Refer to Fig 1.
