CABLE, Shift: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

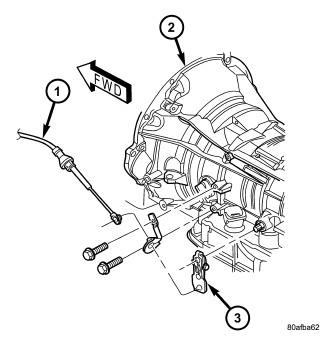

Fig 1: Locating Gearshift Cable At Transmission - RFE
GC0082951Courtesy of CHRYSLER LLC
1 - GEARSHIFT CABLE
2 - RFE TRANSMISSION
3 - MANUAL LEVER
  1. Shift transmission into PARK.
  2. Raise vehicle.
  3. Disengage cable (1) eyelet at transmission manual shift lever (3) and pull cable adjuster out of mounting bracket. Refer toFig 1.

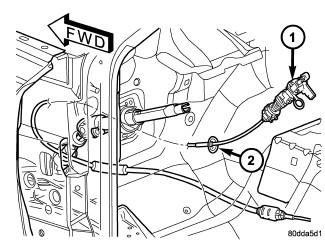

    Fig 2: Gearshift Cable At Dash Panel
    GC0082952Courtesy of CHRYSLER LLC
    1 - GEARSHIFT CABLE
    2 - GROMMET
  4. Lower the vehicle.
  5. Remove the dash panel insulation pad as necessary to access the gearshift cable grommet (2). Refer toFig 2.
  6. Remove grommet (2) from the dash panel.

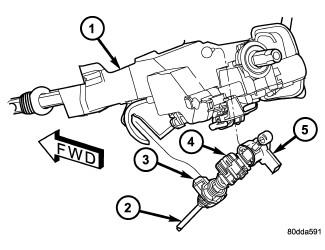

    Fig 3: BTSI Mechanism System Components
    GC0082950Courtesy of CHRYSLER LLC
    1 - STEERING COLUMN
    2 - GEARSHIFT CABLE
    3 - GEARSHIFT CABLE LOCK TAB
    4 - BTSI SOLENOID LOCK TAB
    5 - BTSI CONNECTOR
  7. Remove any steering column (1) trim necessary to access the gearshift cable (2) and BTSI mechanism.
  8. Disconnect the BTSI wiring connector (5).
  9. Disconnect cable at lower column bracket and shift lever pin and pull the cable through the dash panel opening into the vehicle. Refer toFig 3.
  10. Remove gearshift cable (2) from vehicle.
