3.0L Diesel

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

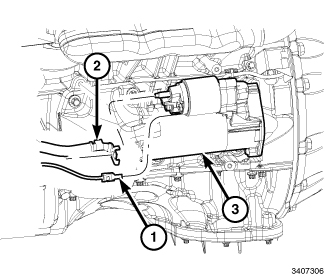

Fig 1: B+ Battery Cable, Solenoid Connector & Starter
GC0146618Courtesy of CHRYSLER GROUP, LLC
  1. Position the starter and install the mounting retainers.

    Tighten to 54 N.m (40 ft. lbs.).

  2. Connect the solenoid connector (1)
  3. Install the B+ cable to starter solenoid stud.

    Tighten to 10 N.m (89 in. lbs.).

  4. Attach the cable harness retainer.
  5. Lower the vehicle.
  6. Connect the negative battery cable.
