3.0L Diesel

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

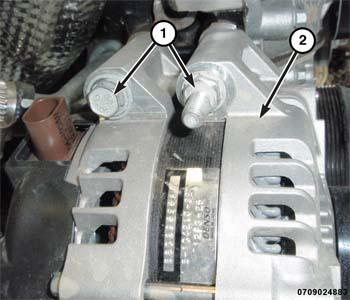

Fig 1: Upper Generator Bolts & Generator
GC0158068Courtesy of CHRYSLER GROUP, LLC
  1. Install the generator (2). Tighten upper bolt (1) to 28 N.m (21 ft. lbs.).

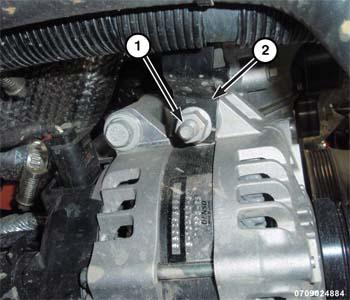

    2. Fig 2: Transmission Cooler Hose Support Bracket & Nut
    GC0158075Courtesy of CHRYSLER GROUP, LLC
  3. Install the coolant hose support bracket. Tighten nut to 11 N.m (97 in. lbs.).

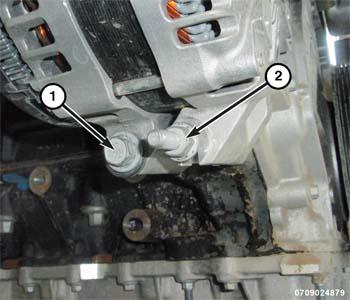

    Fig 3: Lower Outer Generator Bolt & Lower Inner Bolt
    GC0158179Courtesy of CHRYSLER GROUP, LLC
  4. Install the lower inner generator bolt (1). Tighten bolts to 28 N.m (21 ft. lbs.).
  5. Tighten the lower outer generator bolt (2) to 28 N.m (21 ft. lbs.).

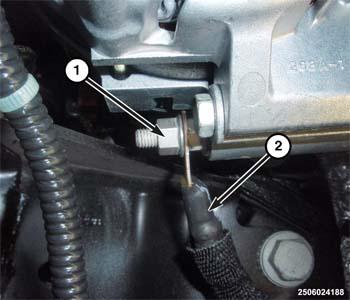

    Fig 4: Nut & Ground Wire
    GC0158096Courtesy of CHRYSLER GROUP, LLC
  6. Install the ground cable (2). Tighten nut (1) 11 N.m (97 in. lbs.).

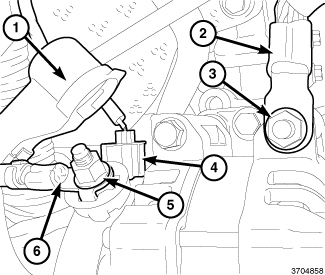

    Fig 5: Nut, Ground Cable, Field Generator Connector, Protective Cover, B+ Cable & B+ Nut
    GC0153866Courtesy of CHRYSLER GROUP, LLC
  7. Install the B+ cable (6) and nut (5) to the generator. Tighten nut (5) to 11 N.m (97 in. lbs.).
  8. Install the protective cover (1) from the B+ cable (6).
  9. Connect the field generator connector (4).
  10. Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
  11. Install right front wheel house splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION and SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
  12. Lower the vehicle.
  13. Connect the negative battery cable.
