Torque Converter: Description: Description: Stator

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

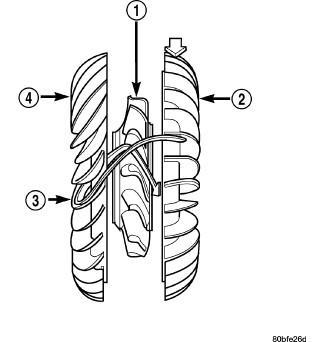

Fig 1: Identifying Stator Location

Courtesy of CHRYSLER LLC

1 - STATOR

2 - IMPELLER

3 - FLUID FLOW

4 - TURBINE

The stator assembly is mounted on a stationary shaft which is an integral part of the oil pump. Refer to Fig 1. The stator (1) is located between the impeller (2) and the turbine (4) within the torque converter case.

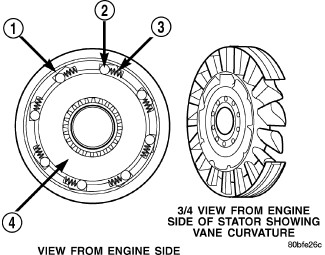

Fig 2: Identifying Stator Components

Courtesy of CHRYSLER LLC

1 - CAM (OUTER RACE)

2 - ROLLER

3 - SPRING

4 - INNER RACE

The stator contains an overrunning clutch (1-4), which allows the stator to rotate only in a clockwise direction. Refer to Fig 2. When the stator is locked against the overrunning clutch, the torque multiplication feature of the torque converter is operational.
