Schematics And Diagrams

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

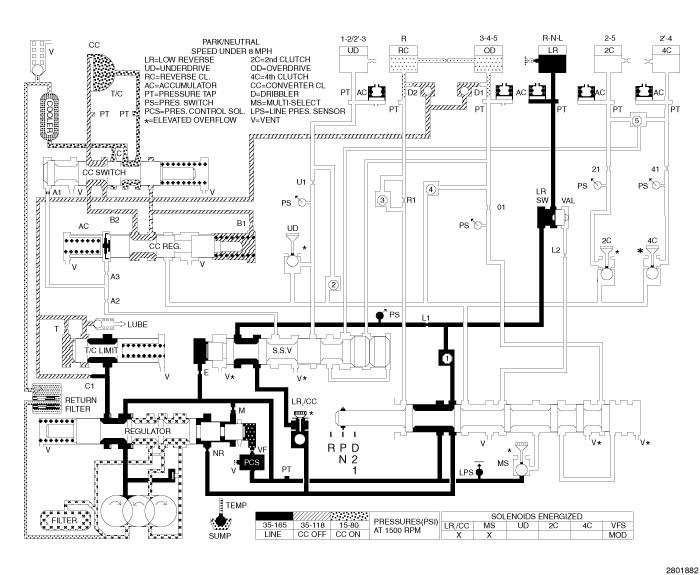

Fig 1: Hydraulic Flow In Park/Neutral

Courtesy of CHRYSLER LLC

Fig 2: Hydraulic Flow In Neutral Over 8MPH

Courtesy of CHRYSLER LLC

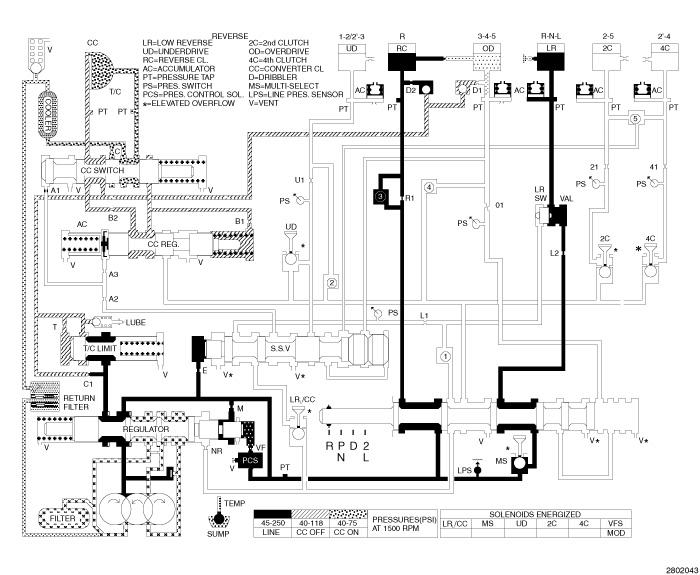

Fig 3: Hydraulic Flow In Reverse

Courtesy of CHRYSLER LLC

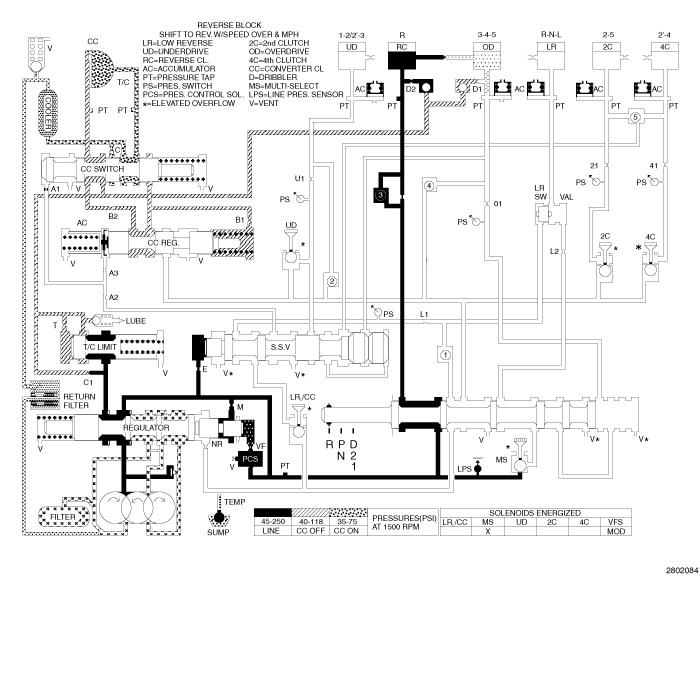

Fig 4: Hydraulic Flow In Reverse Block

Courtesy of CHRYSLER LLC

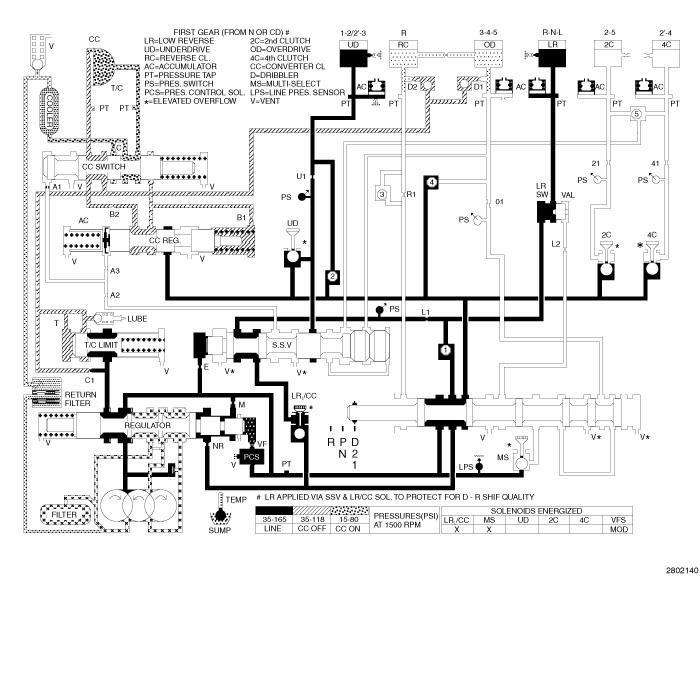

Fig 5: Hydraulic Flow In First Gear (From N Or OD)

Courtesy of CHRYSLER LLC

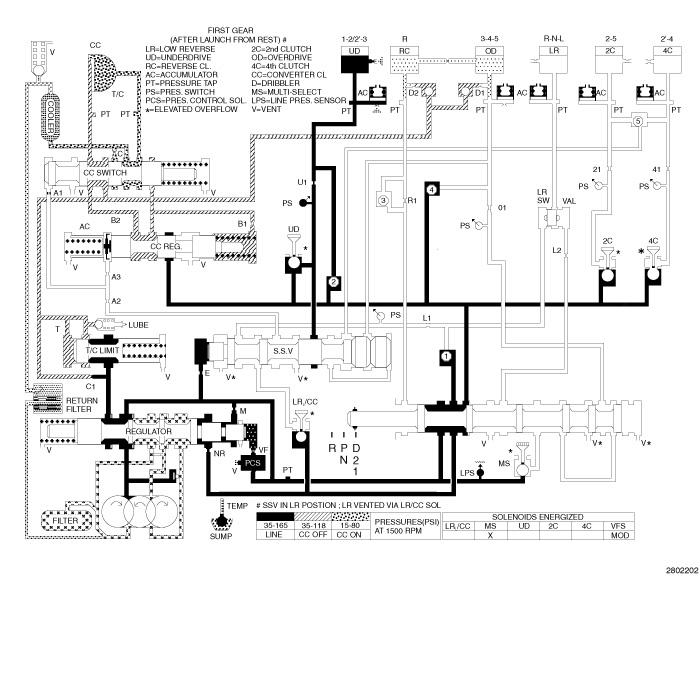

Fig 6: Hydraulic Flow In First Gear (After Launch From Rest)

Courtesy of CHRYSLER LLC

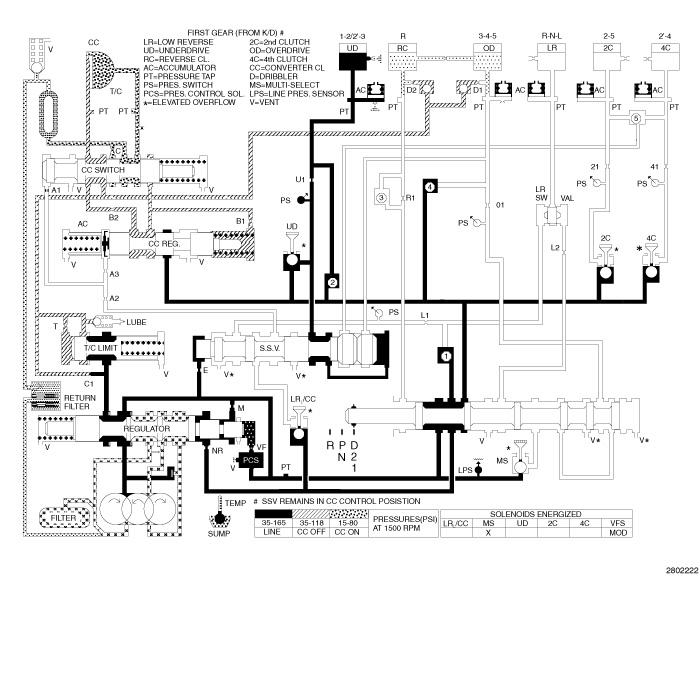

Fig 7: Hydraulic Flow In First Gear (From K/D)

Courtesy of CHRYSLER LLC

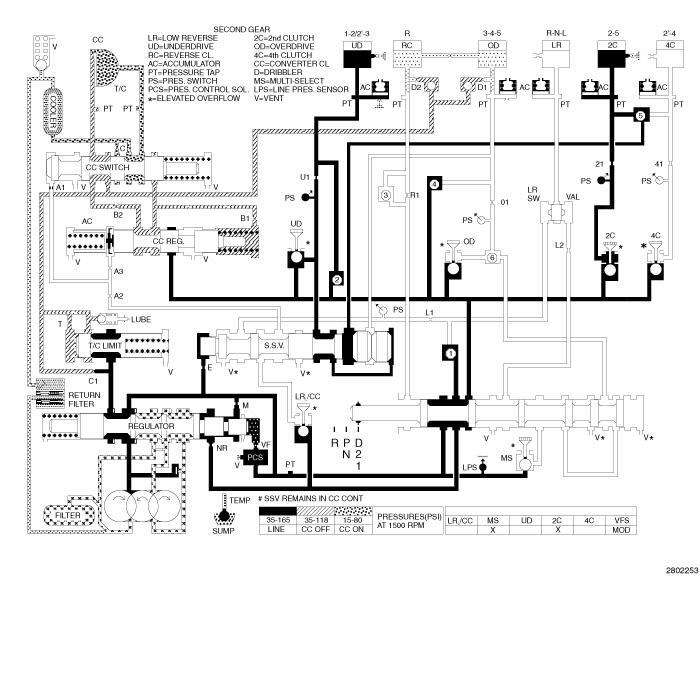

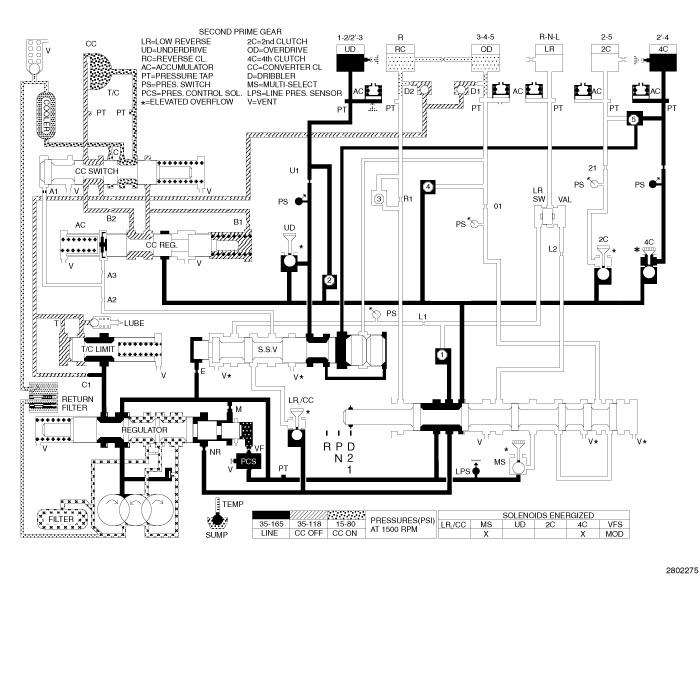

Fig 8: Hydraulic Flow In Second Gear

Courtesy of CHRYSLER LLC

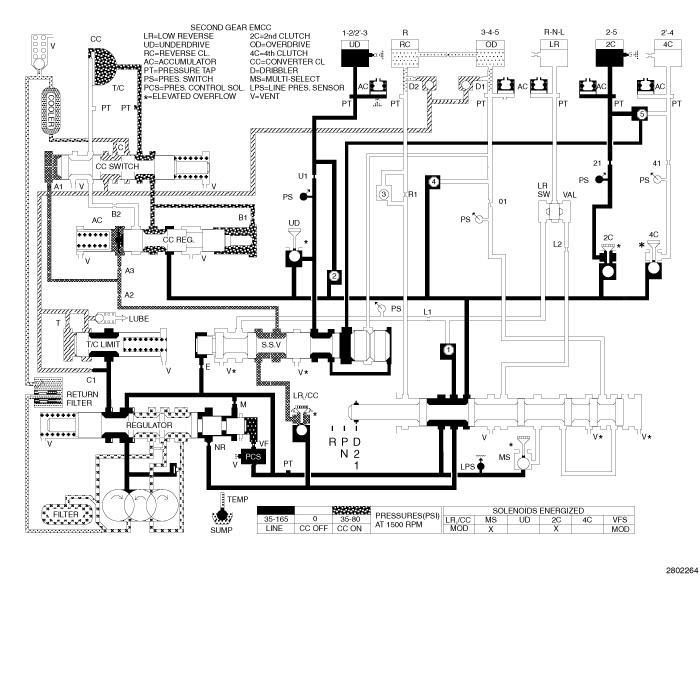

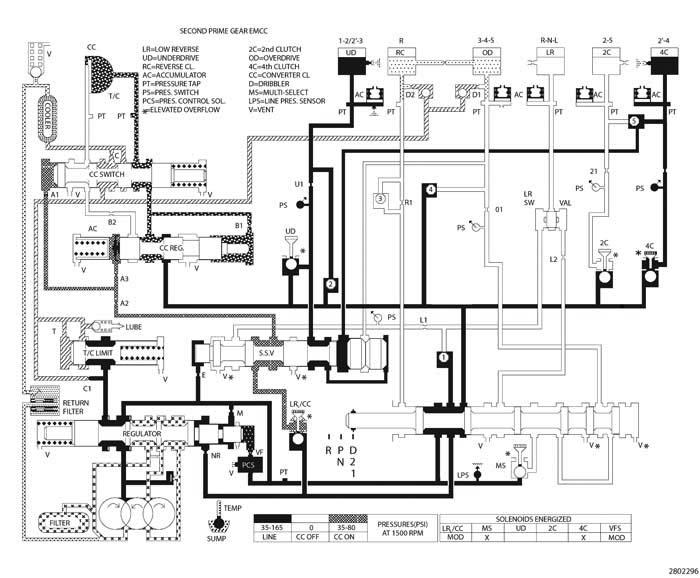

Fig 9: Hydraulic Flow In Second Gear EMCC

Courtesy of CHRYSLER LLC

Fig 10: Hydraulic Flow In Third Gear

Courtesy of CHRYSLER LLC

Fig 11: Hydraulic Flow In Third Gear EMCC

Courtesy of CHRYSLER LLC

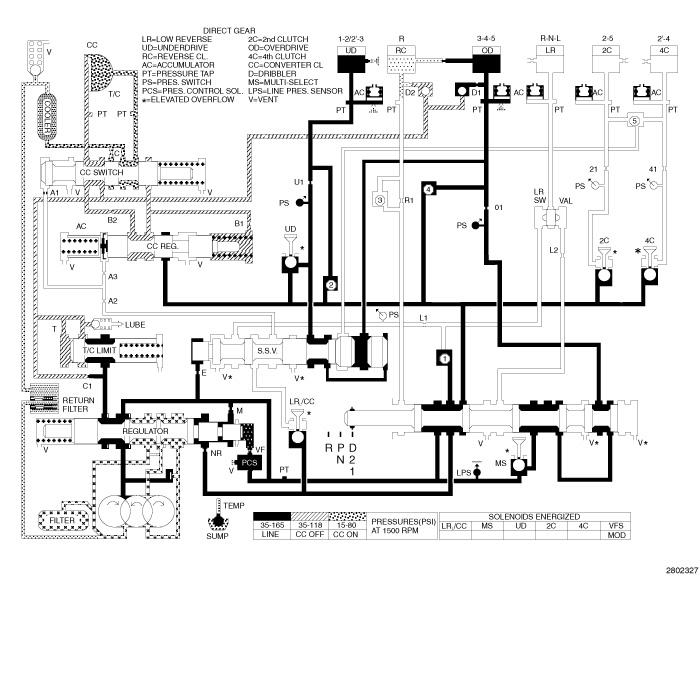

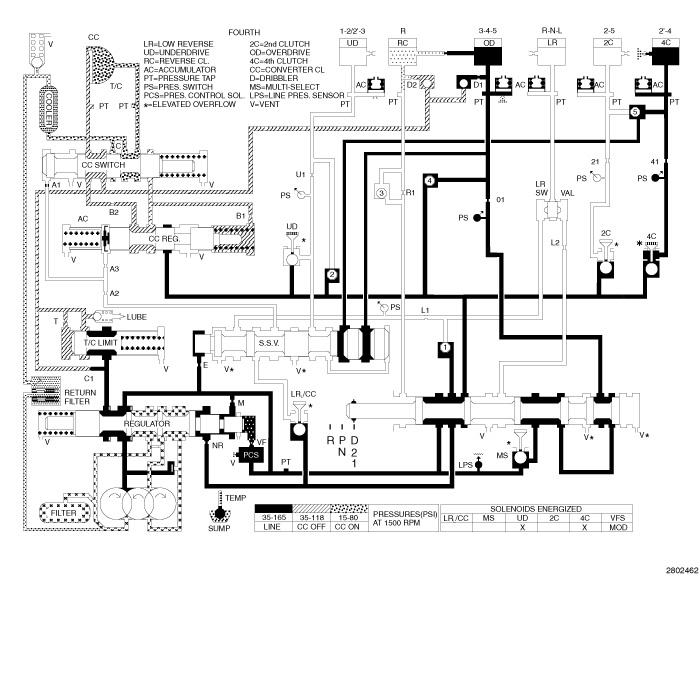

Fig 12: Hydraulic Flow In Direct Gear

Courtesy of CHRYSLER LLC

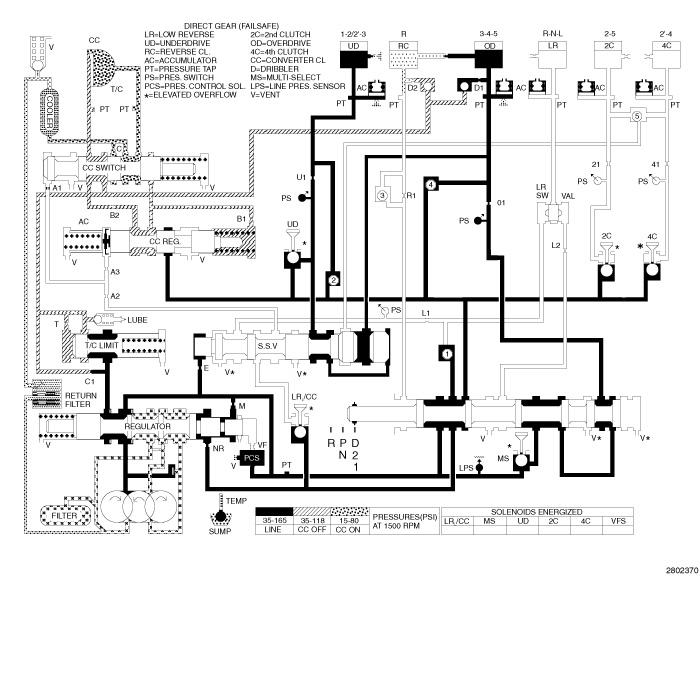

Fig 13: Hydraulic Flow In Direct Gear (Failsafe)

Courtesy of CHRYSLER LLC

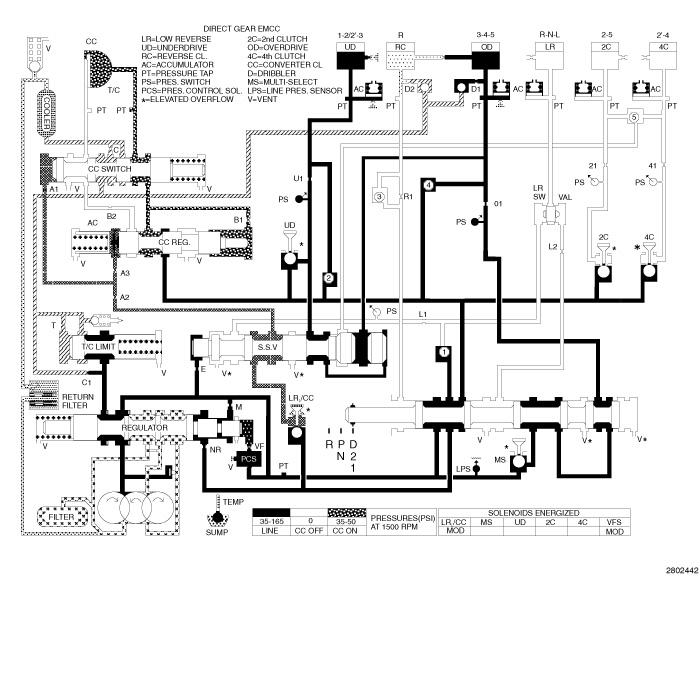

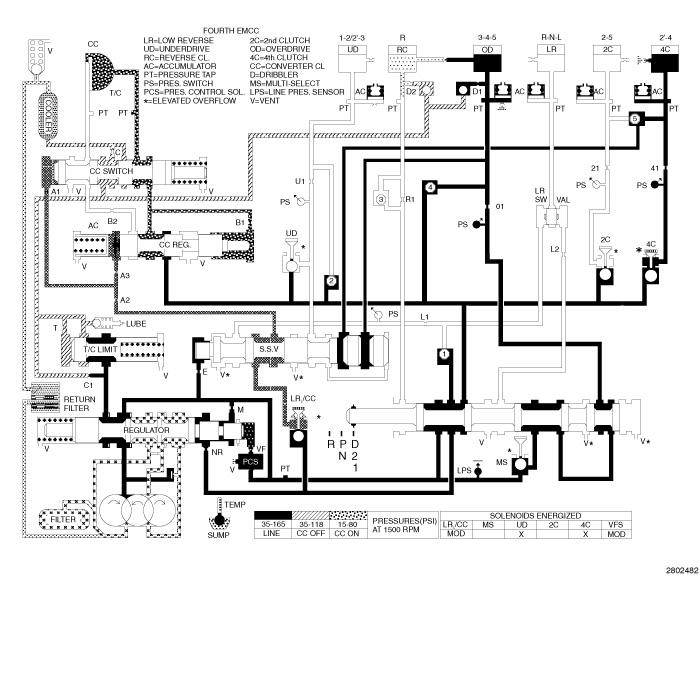

Fig 14: Hydraulic Flow In Direct Gear EMCC

Courtesy of CHRYSLER LLC

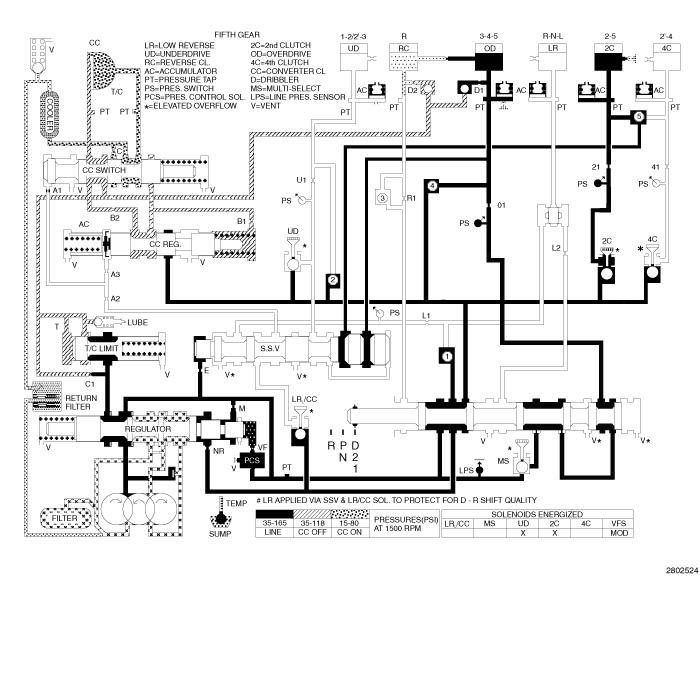

Fig 15: Hydraulic Flow In Fifth

Courtesy of CHRYSLER LLC

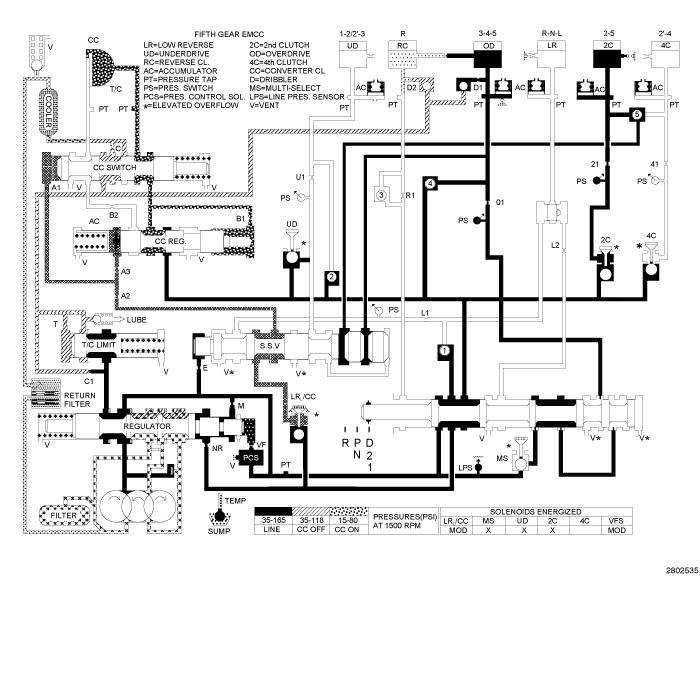

Fig 16: Hydraulic Flow In Fifth EMCC

Courtesy of CHRYSLER LLC

Fig 17: Hydraulic Flow In Sixth

Courtesy of CHRYSLER LLC

Fig 18: Hydraulic Flow In Sixth EMCC

Courtesy of CHRYSLER LLC
