SENSOR, Speed, Output: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

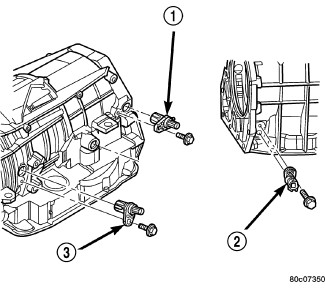

Fig 1: Input Speed Sensor

Courtesy of CHRYSLER LLC

1 - OUTPUT SPEED SENSOR

2 - LINE PRESSURE SENSOR

3 - INPUT SPEED SENSOR

Raise vehicle.
Place a suitable fluid catch pan under the transmission.
Remove the wiring connector from the output speed sensor (1). Refer to Fig 1.
Remove the bolt holding the output speed sensor (1) to the transmission case.
Remove the output speed sensor (1) from the transmission case.
