SEAL, Output Shaft: Installation: Installation
WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the extension housing seal bore in the extension housing of any residue or particles remaining from the original seal.NOTE:
The small weep hole in the dust boot of the seal should face downward when installed in the extension housing.

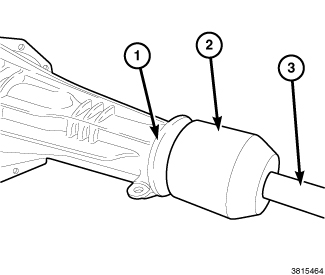

- Install new oil seal in the extension housing (1) using (special tool #8896, Installer, Seal) (2) and (special tool #C-4171, Driver Handle, Universal) (3).
- Install rear drive shaft. Refer to SHAFT, Drive, Rear Light Duty , Installation or SHAFT, Drive, Rear Heavy Duty , Installation .
