CABLE, Shift: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

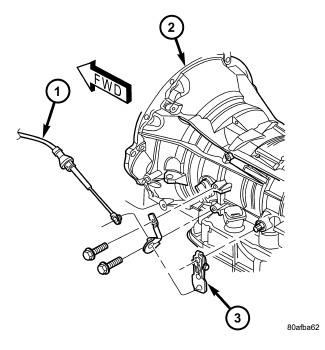

Fig 1: Gearshift Cable AT Transmission
GC0109171Courtesy of CHRYSLER LLC
1 - GEARSHIFT CABLE
2 - RFE TRANSMISSION
3 - MANUAL LEVER
  1. Shift transmission into PARK.
  2. Raise vehicle.
  3. Disengage cable (1) eyelet at transmission manual shift lever (3) and pull cable adjuster out of mounting bracket. Refer toFig 1.

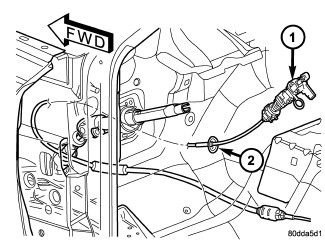

    Fig 2: Gearshift Cable AT The Dash Pane
    GC0109172Courtesy of CHRYSLER LLC
    1 - GEARSHIFT CABLE
    2 - GROMMET
  4. Lower the vehicle.
  5. Remove the dash panel insulation pad as necessary to access the gearshift cable grommet (2). Refer toFig 2.
  6. Remove grommet (2) from the dash panel.

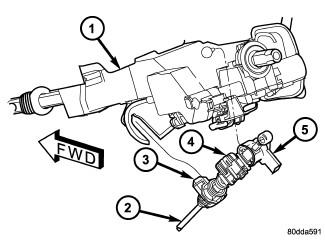

    Fig 3: Brake Transmission Interlock Mechanism
    GC0109173Courtesy of CHRYSLER LLC
    1 - STEERING COLUMN
    2 - GEARSHIFT CABLE
    3 - GEARSHIFT CABLE LOCK TAB
    4 - BTSI SOLENOID LOCK TAB
    5 - BTSI CONNECTOR
  7. Remove any steering column (1) trim necessary to access the gearshift cable (2) and BTSI mechanism.
  8. Disconnect the BTSI wiring connector (5).
  9. Disconnect cable at lower column bracket and shift lever pin and pull the cable through the dash panel opening into the vehicle. Refer toFig 3.
  10. Remove gearshift cable (2) from vehicle.
