AFTERTREATMENT Inspection Guideline: Notes
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC
| 1 - DIESEL OXIDATION CATALYST (DOC) |
5 - MUFFLER |
| 2 - NOx ABSORBER CATALYST (NAC) |
6 - TAILPIPE |
| 3 - DIESEL PARTICULATE FILTER (DPF) |
7 - INSULATOR |
| 4 - BAND CLAMP |
|
Courtesy of CHRYSLER LLC

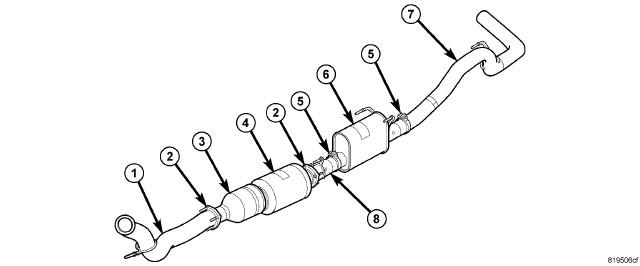

| 1 - EXHAUST PIPE |
5 - BAND CLAMP |
| 2 - FLANGE NUTS |
6 - MUFFLER |
| 3 - DIESEL OXIDATION CATALYST (DOC) |
7 - TAILPIPE |
| 4 - DIESEL PARTICULATE FILTER (DFP) |
8 - INTERMEDIATE PIPE |
