Engine To Heat Shield

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

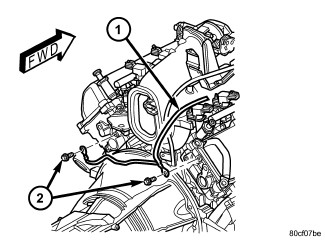

Fig 1: Engine To Heat Shield Ground Strap
GC0083445Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the attaching bolts (2) from the cylinder heads.
    Fig 2: Heat Shield, Nut & Strap
    GC0091831Courtesy of CHRYSLER GROUP, LLC
  3. Remove nut (3) from heat shield (1) and remove strap (2).
