Throttle Body: Removal: 4.7L
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Using a diagnostic scan tool, record any previous DTC's (Diagnostic Trouble Codes).
CAUTION:
Never have the ignition key in the ON position when checking the throttle body shaft for a binding condition. This may set DTC's.
- Disconnect and isolate negative battery cable at battery.

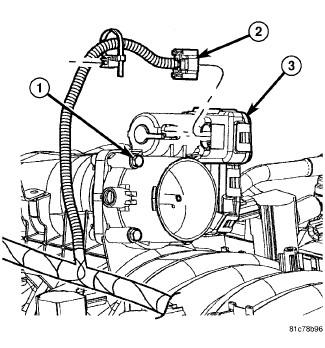

- Remove air duct and air resonator box at throttle body (3).
- Disconnect throttle body electrical connector (2).
- Disconnect necessary vacuum lines at throttle body.
- Remove four throttle body mounting bolts (1).
- Remove throttle body from intake manifold.
- Check condition of old throttle body-to-intake manifold o-ring.
