SENSOR, Manifold Air Pressure (MAP): Removal: 5.7L

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

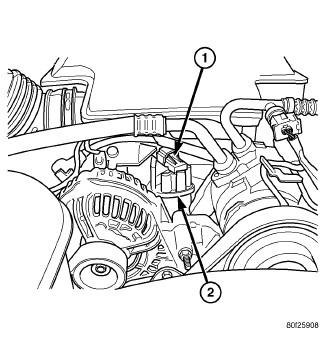

Fig 1: MAP Sensor - 5.7L

Courtesy of CHRYSLER LLC

1 - MAP SENSOR

2 - FRONT OF INTAKE MANIFOLD

The Manifold Absolute Pressure (MAP) sensor is mounted to the front of the intake manifold air plenum box. Refer to Fig 1.

Fig 2: Removing/Installing MAP Sensor - 5.7L

Courtesy of CHRYSLER LLC

1 - PRESS DOWN

2 - SLIDE RELEASE LOCK

3 - MAP SENSOR

Disconnect electrical connector at sensor by sliding release lock out. Refer to Fig 2. Press down on lock tab for removal.
Rotate sensor (3) 1/4 turn counterclockwise for removal.
Check condition of sensor O-ring.
