SENSOR, Crankshaft Position: Installation: 3.7L
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

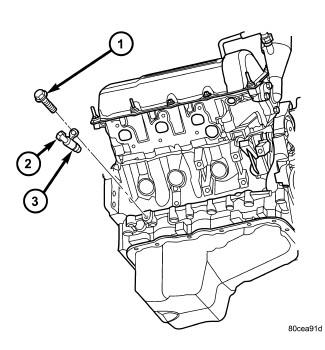

| 1 - MOUNTING BOLT |
| 2 - CKP SENSOR |
| 3 - O-RING |
- Clean out machined hole in engine block.
- Apply a small amount of engine oil to sensor O-ring (3).
- Install sensor into engine block with a slight rocking and twisting action. Refer to Fig 1.CAUTION:
Before tightening the CKP sensor mounting bolt, be sure the sensor is completely flush to the cylinder block. If the CKP sensor is not flush, damage to the sensor mounting tang may result.
- Install mounting bolt and tighten to 28 N.m (21 ft. lbs.) torque.
- Connect electrical connector to sensor.
- Lower vehicle.
