SENSOR, Crankshaft Position: Description: 3.7L
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

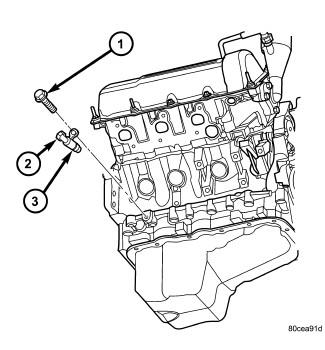

| 1 - MOUNTING BOLT |
| 2 - CKP SENSOR |
| 3 - O-RING |
The Crankshaft Position (CKP) (2) sensor is mounted into the right rear side of the cylinder block. Refer to Fig 1. It is positioned and bolted into a machined hole.
