SENSOR, Air Temperature, Intake: Removal: 5.7L

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

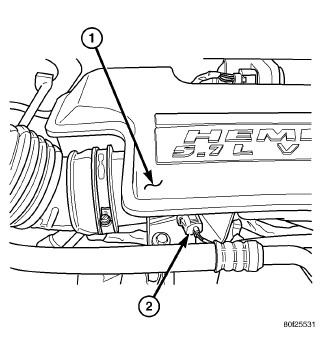

Fig 1: IAT Sensor - 5.7L

Courtesy of CHRYSLER LLC

1 - FRONT OF INTAKE MANIFOLD PLENUM

2 - IAT ELECTRICAL CONNECTOR

The intake manifold air temperature (IAT) sensor (2) is installed into the front of the intake manifold air box plenum. Refer to Fig 1.

Disconnect electrical connector (2) from IAT sensor. Refer to Fig 1.

Clean dirt from intake manifold at sensor base.

Fig 2: IAT Sensor Tab/O-Ring - 3.7L/4.7L/5.7L

Courtesy of CHRYSLER LLC

1 - IAT SENSOR

2 - SENSOR O-RING

3 - RELEASE TAB

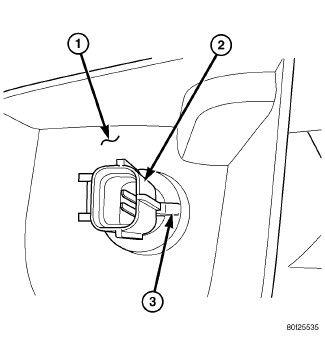

Fig 3: IAT Sensor - 5.7L

Courtesy of CHRYSLER LLC

1 - FRONT OF INTAKE MANIFOLD PLENUM

2 - IAT SENSOR

3 - RELEASE TAB

Gently lift on small plastic release tab (3) and rotate sensor about 1/4 turn counterclockwise for removal. Refer to Fig 3.
Check condition of sensor O-ring.
