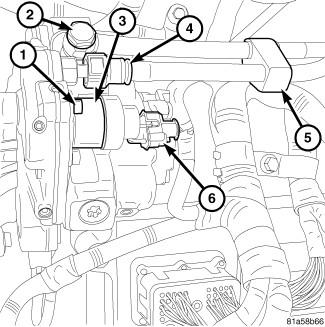

Fig 1: Fuel Injection Pump - Rear View
Courtesy of CHRYSLER LLC
Lubricate new Fuel Control Actuator (FCA) O-ring with clean oil.
Install FCA into the injection pump. Tighten screws (1) to 7 N.m (62 in. lbs)
.
