MANIFOLD, Fuel Drain: Removal: Removal
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

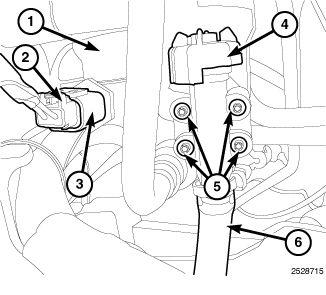

Fig 1: Identifying Drain Valve, Drain Hose, Mounting Screws, Sensor Harness Connector & Filter Housing
- With engine not running, Route the fuel drain hose to an appropriate container and rotate drain valve (4) one quarter turn counter clockwise to open it. Turn the key to the "ON" position. This will cycle the fuel pump for 2 seconds and drain the fluid from the fuel filter housing. Turn the key to the "OFF" position and rotate the drain valve (4) clockwise one quarter turn to close it.
- Disconnect drain hose (6) from the fuel drain valve.
- Remove four drain valve mounting screws (5) and the drain valve (4) from filter housing (1).
