Cooler, Transmission Oil: Assembly: Assembly
WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

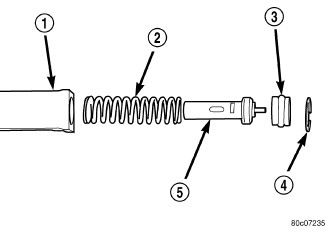

| 1 - THERMOSTAT HOUSING |
| 2 - SPRING |
| 3 - END PLUG |
| 4 - SNAP RING |
| 5 - THERMOSTAT |
- Thoroughly clean the thermostat bore on the transmission oil cooler.
- Install the new spring (2), thermostat (5), end plug (3) and snap ring (4).
- Install the transmission oil cooler. Refer to COOLER, TRANSMISSION OIL, INSTALLATION .
