Standard Procedure: Draining

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

When servicing the cooling system, it is essential that coolant does not drip onto the accessory drive belts and/or pulleys. Shield the belts with shop towels before working on the cooling system. If coolant contacts the belts or pulleys, flush both with clean water.

WARNING:

Make sure engine cooling system is cool before servicing. Do not remove any clamps or hoses, pressure cap, or open the radiator draincock. When the system is hot and under pressure serious burns from coolant can occur.

Fig 1: Lower Radiator Cover

Courtesy of CHRYSLER GROUP, LLC

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove fasteners (3) and the belly pan (2).
Position a drain pan under draincock location.

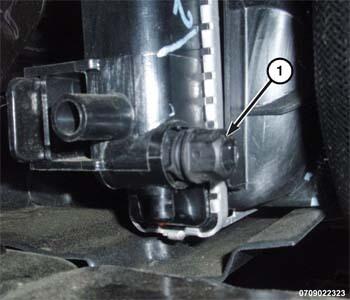

Fig 2: Radiator Draincock
Courtesy of CHRYSLER GROUP, LLC
Open radiator draincock (1) located at the lower left side of radiator. Turn draincock counterclockwise until it stops and allow to drain.
Remove coolant pressure cap.
