Fan, Cooling, Electric: Installation: 3.0L-Diesel
WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Install the electric cooling fan (2.)

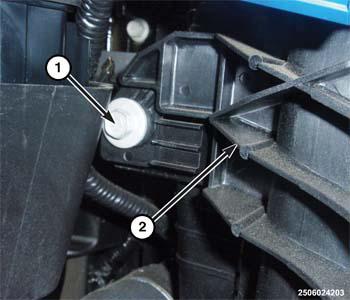

- Install the left fan shroud to radiator mounting bolt (1) and tighten to 10 N.m (89 in. lbs.).

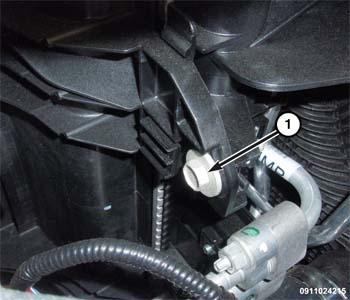

- Install the right fan shroud to radiator mounting bolt (1) and tighten to 10 N.m (89 in. lbs.).
- Connect the electric cooling fan (3) wire harness connector (1).
- Connect the upper radiator hose (2) to radiator (1).
- Install the pressurized coolant bottle. Refer to BOTTLE, PRESSURIZED COOLANT, INSTALLATION .
- Connect the negative battery cable.
