Cooler And Hoses, Charge Air: Removal: Removal

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

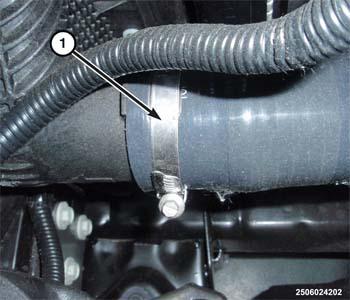

Fig 1: Left Charge Air Cooler (CAC) Hose Clamp
GC0158074Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Loosen clamp and disconnect the left Charge Air Cooler (CAC) hose (1).

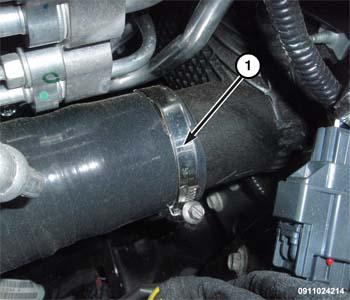

    Fig 2: Right Charge Air Cooler (CAC) Hose Clamp
    GC0158210Courtesy of CHRYSLER GROUP, LLC
  3. Loosen clamp and disconnect the right CAC hose (1).
  4. Remove the active shutter grille. Refer to GRILLE, ACTIVE SHUTTER, REMOVAL .

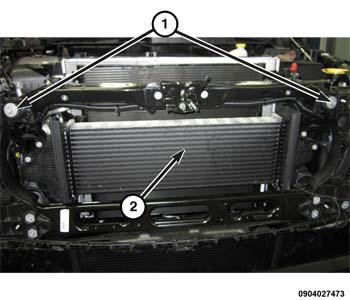

    Fig 3: Charge Air Cooler (CAC) & Bolts
    GC0158128Courtesy of CHRYSLER GROUP, LLC
  5. Remove bolts (1) and the CAC (2) by lifting straight up and out.
