Manifold, Intake: Installation: Installation

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Intake Manifold & Gaskets

Courtesy of CHRYSLER GROUP, LLC

Clean the gasket sealing surfaces. Refer to ENGINE GASKET SURFACE PREPARATION .
Install a new intake manifold gasket (1, 3).

Fig 2: Intake Manifold & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the intake manifold and tighten bolts finger tight.

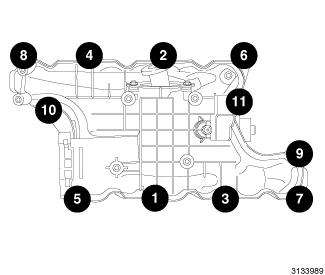

Fig 3: Intake Manifold Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC

Fig 4: Intake Manifold Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Using the tightening sequence shown in illustration, tighten bolts to 12 N.m (106 in. lbs.).

Fig 5: Right & Left High Pressure Fuel Tubes & Union Nuts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Fuel tubes are a one time only use and must be replaced anytime they have been removed.
Install the left side fuel rail. Refer to RAIL, FUEL, INSTALLATION .
Attach the fuel injector return line to the top of intake manifold.
Install the new left high pressure fuel tube (11) and tighten union nuts (10, 12) finger tight:
- Tighten union nut (10) to 5 N.m (44 in. lbs.) plus an additional 75 degrees turn.
- Tighten union nut (12) to 11 N.m (97 in. lbs.) plus an additional 75 degrees turn.
Fig 6: High Pressure Pump Blocker Shield & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the high pressure pump blocker shield. Tighten bolts to 25 N.m (18 ft. lbs.).

Fig 7: EGR Air Flow Control Valve & Bolt
Courtesy of CHRYSLER GROUP, LLC
Position and properly route and install the engine wiring harness.
Attach the vacuum brake booster tube to the top of intake manifold.
Connect the EGR solenoid vacuum lines.
Install the EGR air flow control valve (2). Refer to VALVE, EXHAUST GAS RECIRCULATION (EGR) AIRFLOW CONTROL, INSTALLATION .

Fig 8: Turbocharger Outlet Flange & O-Ring
Courtesy of CHRYSLER GROUP, LLC
Install a new O-ring seal (1) onto turbocharger outlet flange (2).

Fig 9: Turbocharger Outlet Elbow & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the turbocharger outlet elbow (1). Tighten bolts (2) to 10 N.m (89 in. lbs.).

Fig 10: Air Outlet Temperature Sensor
Courtesy of CHRYSLER GROUP, LLC
Connect the turbocharger outlet temperature sensor wire harness connector (1).

Fig 11: Fuel Rail Cross-Over Line & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the EGR tube. Refer to TUBE, EXHAUST GAS RECIRCULATION (EGR), INSTALLATION .
Install a new fuel cross over line (1). Tighten the bolt (2) to 11 N.m (97 in. lbs.).

Fig 12: Wiring Harness Connectors & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Install the wiring loom (2) to the intake manifold. Tighten the Ball stud (2) and the bolt (6) to 11 N.m (97 in. lbs.).

Fig 13: CAC Hose & EGR Air Flow Control Valve
Courtesy of CHRYSLER GROUP, LLC
Connect the CAC hose (1) to the EGR air flow control valve.

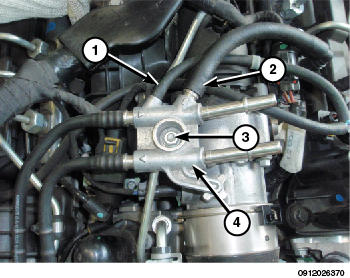

Fig 14: Remove/Install Fuel Injector Return Line
Courtesy of CHRYSLER GROUP, LLC
Install the fuel manifold (4). Tighten nut (3) to 8 N.m (71 in. lbs.).

Fig 15: Removing/Installing Intake Manifold Silencer
Courtesy of CHRYSLER GROUP, LLC
Install the CAC hose from turbocharger to resonator.
Install the Install the intake manifold silencer (2).

Fig 16: Remove/Install Air Cleaner Body & Intake Air Tube
Courtesy of CHRYSLER GROUP, LLC
Install the air cleaner body and intake air tube. Refer to BODY, AIR CLEANER, INSTALLATION .

Fig 17: Removing/Installing Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
Start the engine, allow to warm, turn the engine off and inspect for leaks.
