Seal(S), Camshaft: Installation: Installation

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Oil Breather/Camshaft Seal Housing & Camshaft Seals
GC0146771Courtesy of CHRYSLER GROUP, LLC
  1. Clean all gasket sealing mating surfaces.
  2. Install the camshaft seals (2) into oil breather/camshaft seal housing (1).

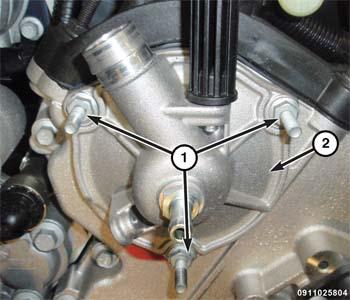

    Fig 2: Oil Breather/Camshaft Seal Housing & Bolts
    GC0158208Courtesy of CHRYSLER GROUP, LLC
  3. Using a new gasket, install the oil breather/camshaft seal housing (2). Tighten bolts (1) to 14 N.m (124 in. lbs.).
  4. Connect the CCV hose to the oil breather/camshaft seal housing.
  5. Install the crankcase pressure sensor. Refer to SENSOR, CRANKCASE PRESSURE, INSTALLATION .
  6. Install the electric vacuum pump. Refer to PUMP, ELECTRIC VACUUM, INSTALLATION .
    Fig 3: CAC Hose & EGR Air Flow Control Valve
    GC0158047Courtesy of CHRYSLER GROUP, LLC
  7. Connect the CAC hose (1) to the EGR air flow control valve (2).
    Fig 4: Removing/Installing Engine Cover
    GC0158138Courtesy of CHRYSLER GROUP, LLC
  8. Install the engine cover.
