Output Shaft Assembly, Front Axle: Disassembly: Disassembly

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

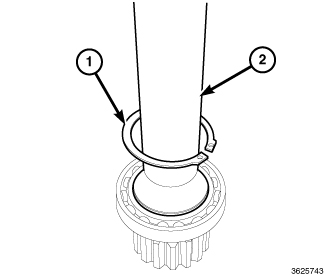

Fig 1: Output Shaft & Snap Ring
GC0152038Courtesy of CHRYSLER GROUP, LLC
  1. Remove snap ring (1) from output shaft (2).

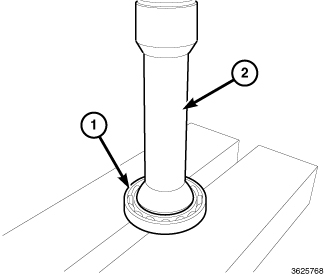

    Fig 2: Output Shaft And Bearing
    GC0152039Courtesy of CHRYSLER GROUP, LLC
  2. Press output shaft (2) out of bearing (1).
