Ball Joint, Suspension, Lower: Installation: Installation
WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

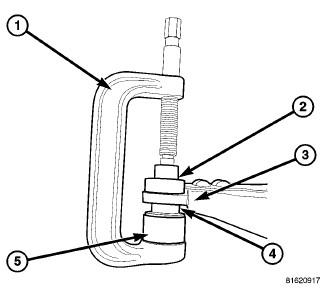

- Install the ball joint (4) into the control arm (3) and press in using Ball Joint Press C-4212F (press) (1), Ball Joint Remover/Installer (special tool #8698-3, Remover/Installer) (driver) (2) and Ball Joint Remover/Installer (special tool #8698-1, Installer, Ball Joint) (receiver) (5).
- Stake the ball joint flange in four evenly spaced places around the ball joint flange, using a punch and hammer.
- Install the steering knuckle. Refer to KNUCKLE, STEERING, INSTALLATION .
- Install the tie rod end into the steering knuckle. Refer to END, TIE ROD, INSTALLATION .
- Install the brake caliper and rotor. Refer to ROTOR, BRAKE, INSTALLATION .
- Install the tire and wheel assembly. Refer to WHEELS, STANDARD PROCEDURE .
- Check the vehicle ride height. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
- Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
