Diagnostic Test

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
  1. DTC IS ACTIVE
    NOTE:

    If there are any ASD Relay or system voltage DTCs present, diagnose those DTCs before proceeding with this test procedure.

    1. Ignition on, engine not running.
    2. With the scan tool, select View DTCs. Copy DTC and Freeze Frame information and clear DTCs.
      NOTE:

      Active or pending DTCs may not allow A/C clutch actuation, make sure all DTCs are cleared before proceeding with this test procedure.

    3. With the scan tool, actuate the A/C Compressor.
    4. Monitor the scan tool for at least two minutes.
    5. With the scan tool, select View DTCs.

      Is the status Active for this DTC?

      Yes

      • Go To  2

      No

  2. (C13) A/C CLUTCH RELAY CONTROL CIRCUIT SHORTED TO GROUND
    Fig 1: Checking A/C Clutch Relay Control Circuit For Short To Ground
    GC0150184Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the TIPM C1 harness connector.
    3. Disconnect the PCM C1 harness connector.
    4. Measure the resistance between ground and the (C13) A/C Clutch Relay Control circuit in the PCM C1 harness connector.

      Is the resistance below 100 Ohms?

      Yes

      • Repair the short to ground in the (C13) A/C Clutch Relay Control circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      • Go To  3
  3. (C13) A/C CLUTCH CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

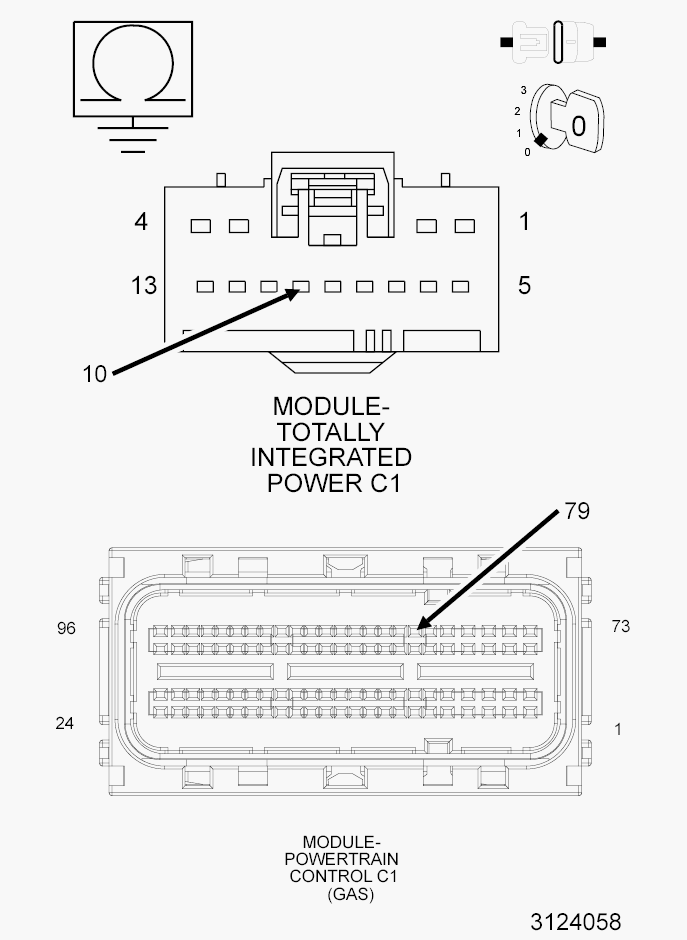

    Fig 2: Checking A/C Clutch Control Circuit For An Open Or High Resistance
    GC0150185Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (C13) A/C Clutch Control circuit between the TIPM C1 harness connector and the PCM C1 harness connector.

      Is the resistance below 5.0 Ohms?

      Yes

      • Go To  4

      No

      • Repair the open or high resistance in the (C13) A/C Clutch Control circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  4. TOTALLY INTEGRATED POWER MODULE (TIPM) ACTUATION
    1. Reconnect the TIPM C1 harness connector.
    2. Turn the ignition on.
    3. Connect a jumper between ground and the (C13) A/C Clutch Relay Control circuit at the PCM C1 harness connector.
      NOTE:

      The A/C Compressor Clutch should engage when the (C13) A/C Clutch Relay Control circuit is jumped to ground.

      Did the A/C Compressor Clutch engage when the (C13) A/C Clutch Relay Control circuit is jumped to ground?

      Yes

      • Go To  6

      No

      • Go To  5
  5. TOTALLY INTEGRATED POWER MODULE (TIPM)
    1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Totally Integrated Power Module (TIPM) and the Powertrain Control Module (PCM).
    2. Look for any chafed, pierced, pinched or partially broken wires.
    3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the related connectors.
    4. Perform any Technical Service Bulletins that may apply.

      Were any problems found?

      Yes

      • Repair as necessary.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      • Replace and program the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  6. POWERTRAIN CONTROL MODULE (PCM)
    1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Totally Integrated Power Module (TIPM) and the Powertrain Control Module (PCM).
    2. Look for any chafed, pierced, pinched or partially broken wires.
    3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the related connectors.
    4. Perform any Technical Service Bulletins that may apply.

      Were any problems found?

      Yes

      • Repair as necessary.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No
