Diagnostic Test

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
1. Start the engine and allow it to reach normal operating temperature.
  WARNING:
  When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in possible serious or fatal injury.

  NOTE:
  Diagnose and repair any system voltage DTCs before continuing with this test.
2. With the scan tool, select View DTCs.
  Is the DTC Active at this time?

  Yes
  - Go To 2
  No
  - Perform the INTERMITTENT CONDITION diagnostic procedure. Refer to STANDARD PROCEDURE .
IAT SENSOR
1. Turn the ignition off.
2. Disconnect the IAT Sensor harness connector.
3. Ignition on, engine not running.
4. With the scan tool, read IAT voltage.
  NOTE:
  The sensor voltage should be approximately 5.0 Volts (plus or minus 1 Volt) with the connector disconnected.

  Does the scan tool display the voltage as described above?

  Yes
  - Verify that there is good pin to terminal contact in the IAT Sensor and Powertrain Control Module connectors. If OK, replace the Intake Air Temperature Sensor. Refer to SENSOR, AIR TEMPERATURE, INLET, REMOVAL .
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Go To 3
(K21) IAT SIGNAL SHORTED TO GROUND

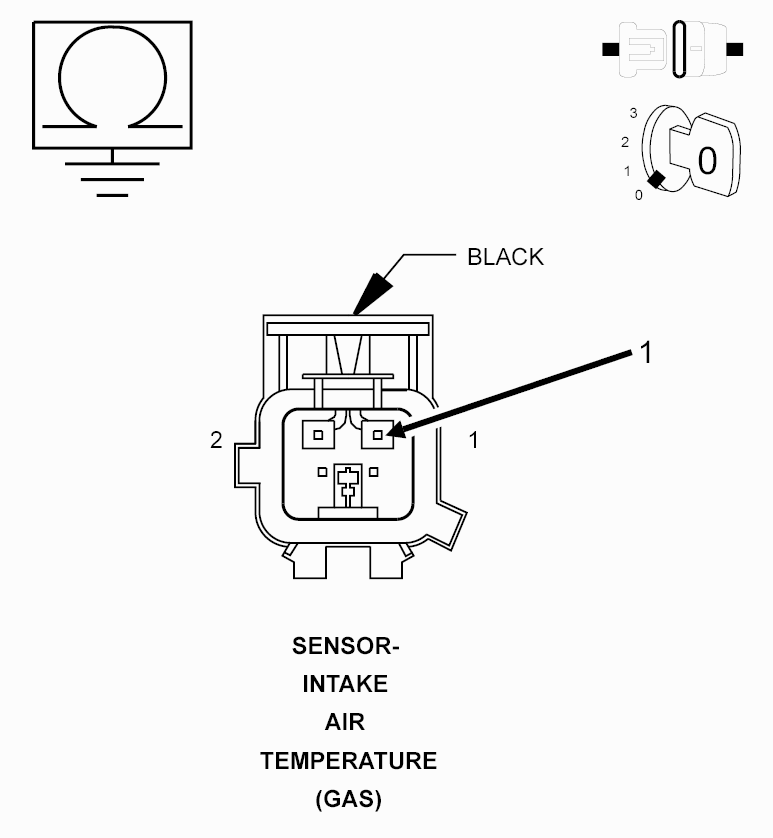

Fig 1: Checking IAT Signal Circuit For A Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the PCM C2 harness connector.
3. Measure the resistance between ground and the (K21) IAT Signal circuit in the IAT Sensor harness connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the short to ground in the (K21) IAT Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Go To 4
(K21) IAT SIGNAL SHORTED TO THE (K900) SENSOR GROUND CIRCUIT

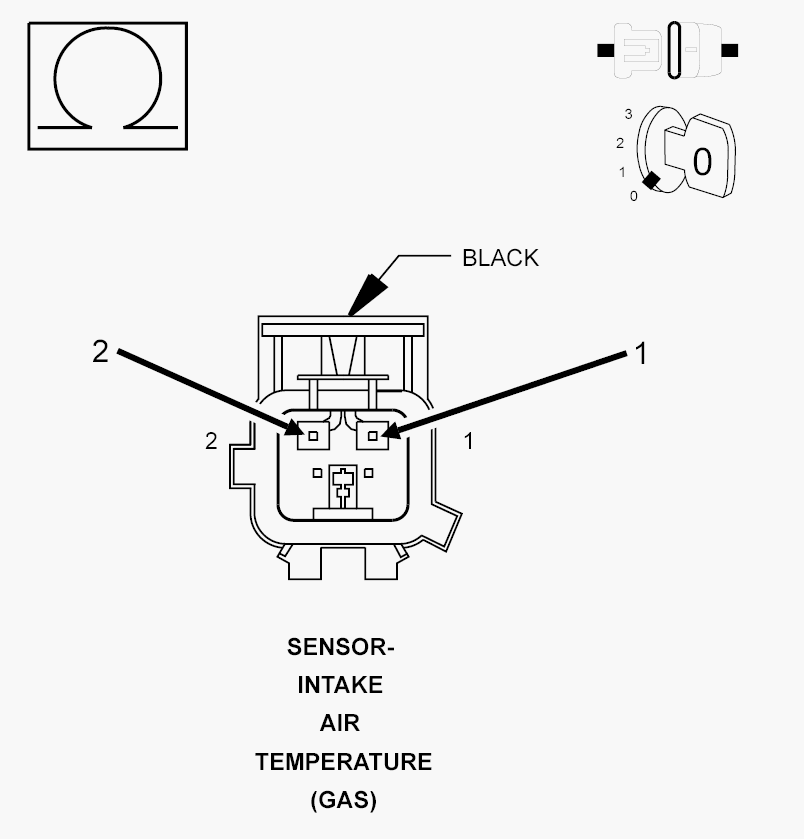

Fig 2: Checking IAT Signal Circuit For A Short To Sensor Ground Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance between the (K21) IAT Signal circuit and the (K900) Sensor ground circuit in the IAT Sensor harness connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the short between the (K900) Sensor ground circuit and the (K21) IAT Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Go To 5
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the IAT Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the IAT Sensor and Powertrain Control Module connectors.
4. Perform any Technical Service Bulletins that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Replace and program the Powertrain Control Module in accordance with the Service Information. Refer to MODULE, POWERTRAIN CONTROL, REMOVAL .
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to STANDARD PROCEDURE .
