P2431-Secondary Air Injection System Air Flow Sensor Circuit Performance: Notes

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

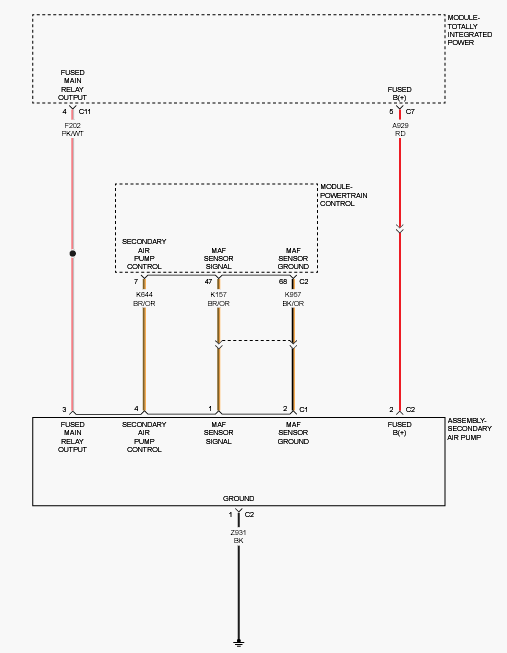

Fig 1: Secondary Air Injection System Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
