Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE DTCS PRESENT
1. With the scan tool, read PCM DTCs.
  Are there any Powertrain Control Module (PCM) brake switch related DTCs present?

  Yes
  - and perform the appropriate diagnostic procedure. Refer to appropriate Electrical Diagnostic Information .
  No
  - Go To 2.
CHECK THE (K321) BTSI CONTROL CIRCUIT

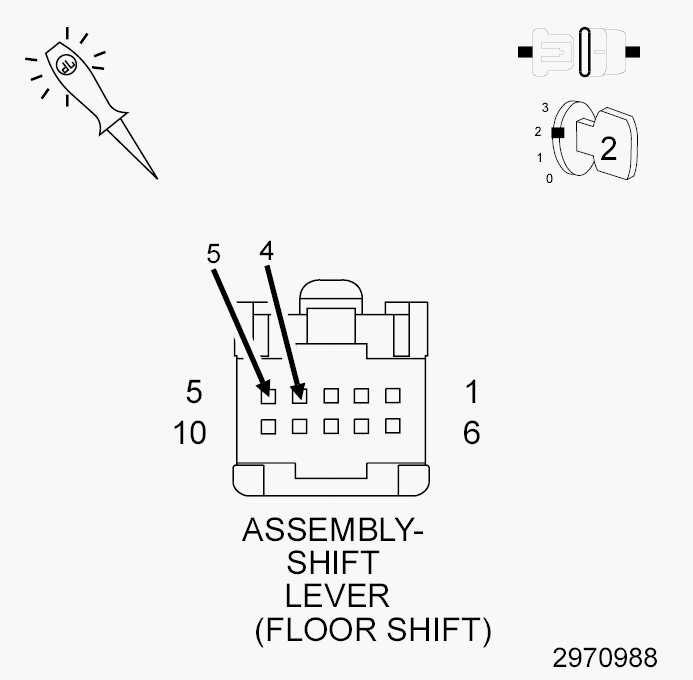

Fig 1: Checking The BTSI Control Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the Shift Lever Assembly harness connector.
  NOTE:
  Check connectors - Clean/repair as necessary.
3. Using a 12-volt test light, connect one end to the (Z911) Ground circuit and the other to the (K321) BTSI Control circuit in the Shifter connector.
4. Turn the Ignition on, engine not running.
5. With the scan tool under WIN, select Actuators and actuate the BTSI.
  Does the test light illuminate brightly while the actuator is cycling the (K321) BTSI Control circuit on and off?

  Yes
  - Replace the Shift Lever Assembly in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST for 1500, 2500 & 3500, or BODY VERIFICATION TEST for 3500 CAB & CHASSIS, 4500 & 5500 .
  No
  - With the scan tool, stop the actuation.
  - Go To 3.
CHECK THE (Z911) GROUND CIRCUIT

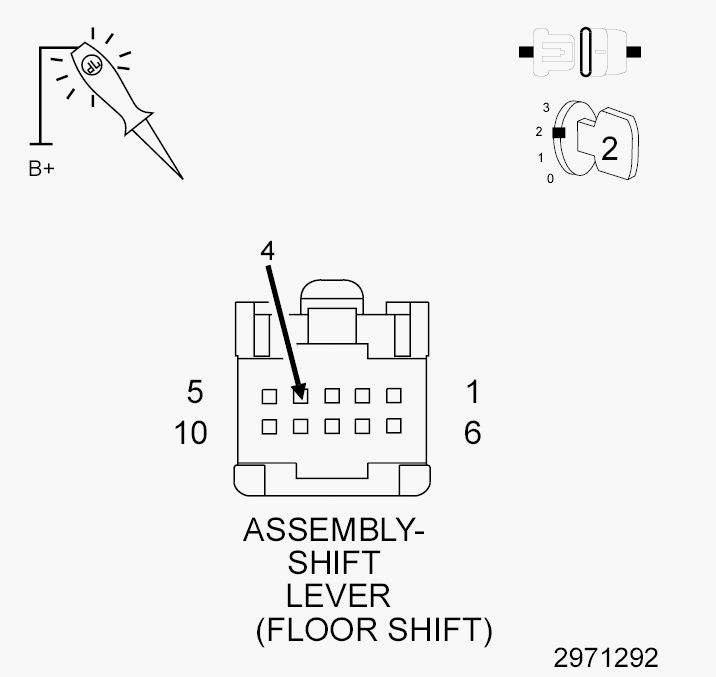

Fig 2: Checking The Ground Circuit
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to 12-volts, check the (Z911) Ground circuit in the Shifter connector.
  Does the test light illuminate brightly?

  Yes
  - Go To 4.
  No
  - Repair the open in the (Z911) Ground circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST for 1500, 2500 & 3500, or BODY VERIFICATION TEST for 3500 CAB & CHASSIS, 4500 & 5500 .
(K321) BTSI CONTROL CIRCUIT SHORT TO GROUND

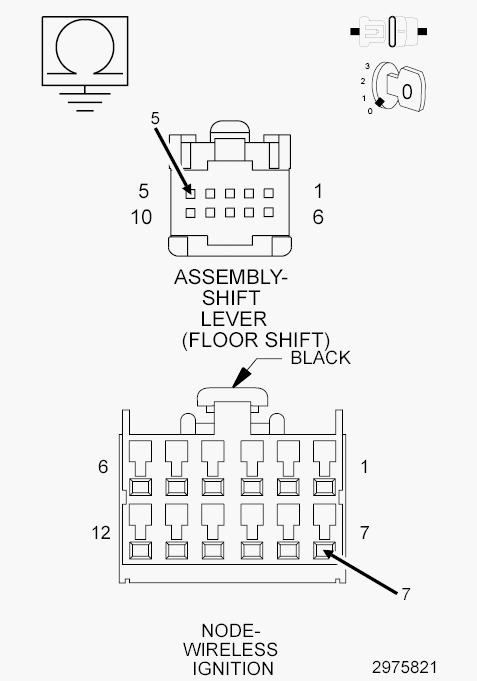

Fig 3: Checking BTSI Control Circuit For Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the WIN harness connector.
  NOTE:
  Check connectors - Clean/repair as necessary.
3. Measure the resistance between ground and the (K321) BTSI Control circuit in the WIN and the Shift Lever connectors.
  Is the resistance below 10k Ohms at either connector?

  Yes
  - Repair the short to ground in the (K321) BTSI Control circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST for 1500, 2500 & 3500, or BODY VERIFICATION TEST for 3500 CAB & CHASSIS, 4500 & 5500 .
  No
  - Go To 5.
(K321) BTSI CONTROL CIRCUIT OPEN

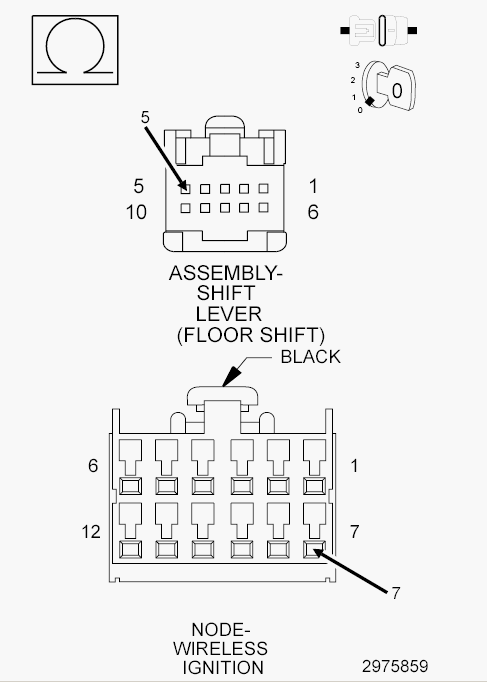

Fig 4: BTSI Control Circuit Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K321) BTSI Control circuit between the Shift Lever harness connector and the WIN harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the open in the (K321) BTSI Control circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST for 1500, 2500 & 3500, or BODY VERIFICATION TEST for 3500 CAB & CHASSIS, 4500 & 5500 .
  No
  - Go To 6.
(K321) BTSI CONTROL CIRCUIT SHORTED TO VOLTAGE

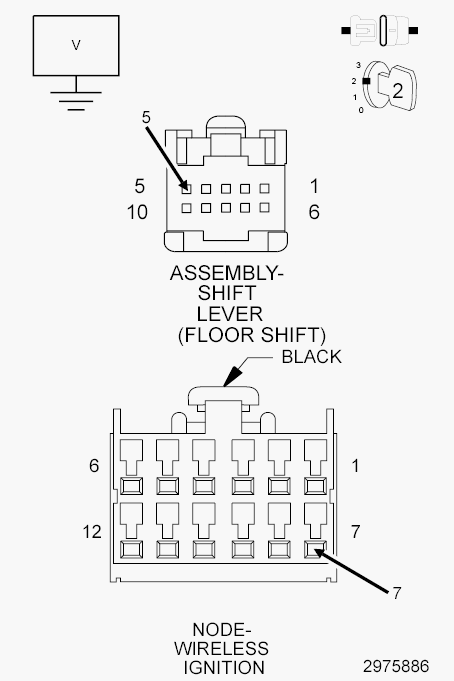

Fig 5: BTSI Control Circuit Shorted To Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Measure the voltage between ground and the (K321) BTSI Control circuit in the Shift Lever harness connector and the WIN harness connector.
  Is there any voltage present at either connector?

  Yes
  - Repair the short to voltage in the (K321) BTSI Control circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST for 1500, 2500 & 3500, or BODY VERIFICATION TEST for 3500 CAB & CHASSIS, 4500 & 5500 .
  No
  - Replace the Wireless Ignition Node in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST for 1500, 2500 & 3500, or BODY VERIFICATION TEST for 3500 CAB & CHASSIS, 4500 & 5500 .
