STUD, Wheel: Removal: Front

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

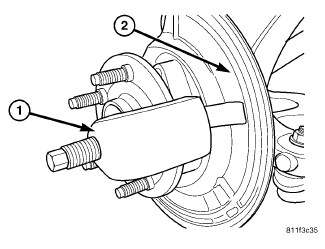

Fig 1: Using Special Tool
GC0083092Courtesy of CHRYSLER LLC
  1. Raise and support the vehicle.
  2. Remove the wheel and tire assembly.
  3. Remove the brake caliper, caliper adapter and rotor. Refer to ROTOR, Brake , Removal .
  4. Remove the wheel speed sensor from the hub.
    NOTE:

    After the wheel stud is pressed from the flange, the axle shaft will not turn past the hub/bearing retaining bolt end. Before pressing the wheel stud from the flange, rotate the axle shaft so the stud that needs replacement is aligned with the wheel speed sensor opening.

  5. Press the stud from the hub using remover (special tool #C-4150A, Press, Ball Joint) (1).
    Fig 2: Stud Aligned For Installing/Removal
    GC0083093Courtesy of CHRYSLER LLC
  6. Remove the stud (2) from the hub (1) through the backing plate access hole (3).
