STUD, Wheel: Installation: Rear
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Install the new stud (4) into the hub flange (2) at the opening where the adjuster was removed.
- Install three proper sized washers (1) onto the new stud (4), then install a lug nut (3) with the flat side of the nut against the washers.
- Tighten the lug nut (3) until the stud (4) is pulled into the hub flange (2). Verify that the stud is properly seated into the flange.
- Remove the lug nut (3) and washers (1).

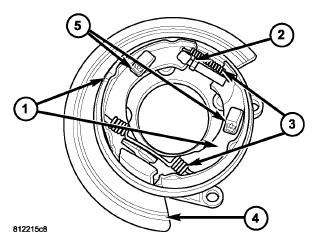

- Install the parking brake adjuster (2) between the parking brake shoes (1) with the adjuster star wheel near the adjustment window in the brake shield.
- Using appropriate tools, install the spring (3) at the adjuster (2).
- Adjust parking brake shoes as necessary. Refer to SHOES, Parking Brake , Adjustments .
- Install the brake rotor, caliper adapter and caliper. Refer to ROTOR, Brake , Installation .
- Using a new lug nut on the new stud, install the wheel and tire assembly. Refer to Wheels , Standard Procedure .
- Remove the supports and lower the vehicle.
