Rear - 1500 Only

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

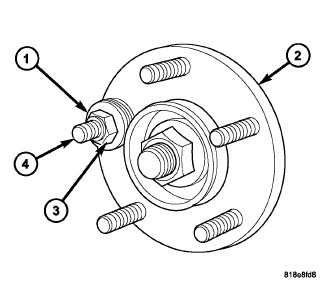

Fig 1: Stud Installation
GC0082305Courtesy of CHRYSLER LLC
CAUTION:

Move axle shaft carefully to prevent damage to the shaft bearing and seal in the axle tube.

  1. Install the new stud (4) into the back of the hub flange (2) and seat as follows:
    1. Install three proper sized washers (1) onto the new stud (4), then install a lug nut (3) with the flat side of the nut against the washers.
    2. Tighten the lug nut (3) until the stud (4) is pulled into the hub flange (2). Verify that the stud is properly seated into the flange.
    3. Remove the lug nut (3) and washers (1).
  2. Install the axle shaft. Refer to the appropriate Differential/Driveline article.
  3. Using a new lug nut on the new stud, install the wheel and tire assembly. Refer to Wheels , Standard Procedure .
  4. Remove the supports and lower the vehicle.
