STUD, Wheel: Installation: Front
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

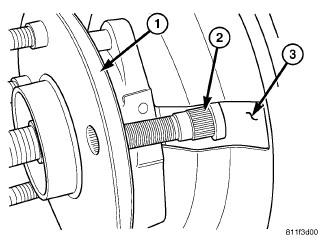

- Install the new stud (2) into the hub flange (1).
- Install three proper sized washers onto the stud, then install lug nut with the flat side of the nut against the washers.
- Tighten the lug nut until the stud is pulled into the hub flange. Verify that the stud is properly seated into the flange.
- Remove the lug nut and washers.
- Install the brake rotor, caliper adapter, and caliper. Refer to ROTOR, Brake , Installation .
- Install the wheel speed sensor.
- Install the wheel and tire assembly, use new lug nut on the stud or studs that were replaced.
- Remove the support and lower the vehicle.
