Hd - Wheels

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Original equipment wheels are designed for the specified Maximum Vehicle Capacity.

All models use steel or aluminum drop center wheels.

Aluminum wheels require special balance weights and alignment equipment.

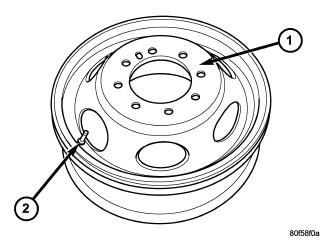

Fig 1: Flat Face Wheel

Courtesy of CHRYSLER LLC

1 - FLAT FACE

2 - VALVE STEM

On vehicles equipped with dual rear wheels, the rim is an eight stud hole pattern wheel. The wheels have a flat mounting surface (1).

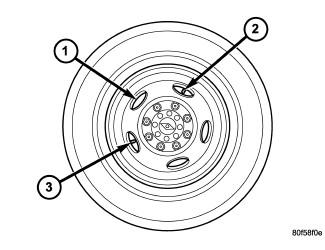

Fig 2: Aligned Slots - Dual Rear Wheels

Courtesy of CHRYSLER LLC

1 - WINDOW OPENINGS (5)

2 - INBOARD VALVE STEM

3 - OUTBOARD VALVE STEM

The slots (1) in the wheel must be aligned to provide access to the valve stem.
