WINCH, Spare Tire Carrier: Removal: Removal
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
"Do NOT use impact tools on the Spare Tire Winch assembly to raise or lower the Spare Tire".
- Remove the spare tire.
- Raise and support the vehicle. Refer to Hoisting , Standard Procedure .

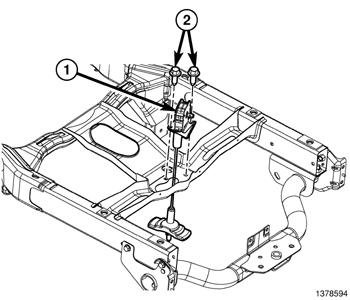

- Remove the spare tire winch bolts (2) and then remove the winch (1).
