MODULE, Tire Pressure Monitoring (TPM): Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The TPM is located in the left front wheel well forward of the splash shield, near the body to frame mount and is mounted to the frame with a bracket.

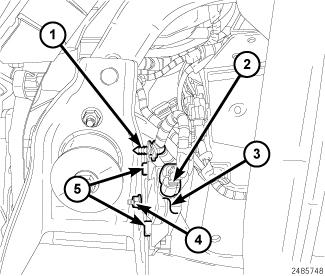

Fig 1: Tire Pressure Monitor Module & Wiring Harness Connector
GC0137169Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Raise and support the vehicle. Refer to Hoisting , Standard Procedure .
  3. Disconnect the wiring harness connector (2) and wiring harness retainer (1) at the Tire Pressure Module (3).
  4. Remove mounting nut (4), then remove the Tire Pressure Module (3) from the frame.
