Diagnostic Test

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
  1. VERIFY THAT DTC U0171-LOST COMMUNICATION W/UP-FRONT RIGHT SATELLITE ACCELERATION SENSOR IS ACTIVE
    WARNING:

    Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    NOTE:

    Using the wiring diagram/schematic as a guide check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.

    NOTE:

    If after the harness inspection it appears the impact sensor connector is only seated halfway. Reseat the harness connector into the impact sensor and lock the tab.

    WARNING:

    Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    NOTE:

    Make sure the battery is fully charged.

    1. Turn the ignition on.
    2. Using the scan tool, read ORC DTCs.

      Does the scan tool display active: U0171-LOST COMMUNICATION W/UP-FRONT RIGHT SATELLITE ACCELERATION SENSOR?

      Yes

      • Go To  2

      No

  2. CHECK THE (R80) and (R82) FRONT RIGHT IMPACT SENSOR CIRCUITS FOR A SHORT TO BATTERY

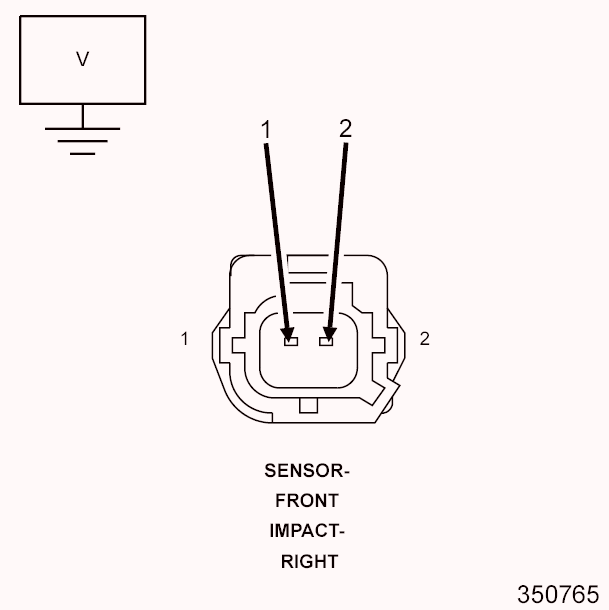

    Fig 1: Checking Front Right Impact Sensor Circuits For A Short To Battery
    GC0123494Courtesy of CHRYSLER GROUP, LLC
    WARNING:

    Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Disconnect the Front Right Impact Sensor harness connector.
    2. Disconnect the ORC harness connectors.
    3. Connect the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) to the ORC harness connector.
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    4. Measure the voltage of the (R80) Front Right Impact Sensor Signal circuit and the (R82) Sensor Ground circuit at the Front Right Impact Sensor harness connector.

      Is there any voltage present?

      Yes

      • Repair the (R80) and (R82) Front Right Impact Sensor circuits for a short to battery.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      • Go To  3
  3. CHECK THE R80 AND R82 FRONT RIGHT IMPACT SENSOR CIRCUITS FOR A SHORT TO GROUND

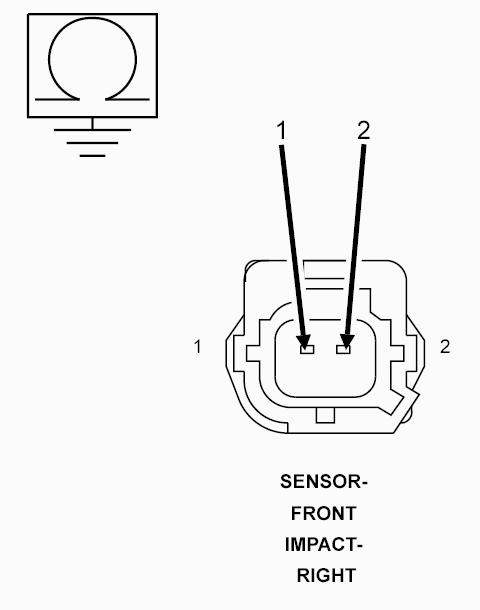

    Fig 2: Checking Front Right Impact Sensor Circuits For A Short To Ground
    GC0123495Courtesy of CHRYSLER GROUP, LLC
    WARNING:

    Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Measure the resistance between ground and the (R80) and (R82) Front Right Impact Sensor circuits at the Front Right Impact Sensor harness connector.

      Is the resistance below 100K Ohms?

      Yes

      • Repair the (R80) and (R82) Front Right Impact Sensor circuits for a short to ground.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      • Go To  4
  4. CHECK THE (R80) AND (R82) FRONT RIGHT IMPACT SENSOR CIRCUITS FOR A SHORT TOGETHER

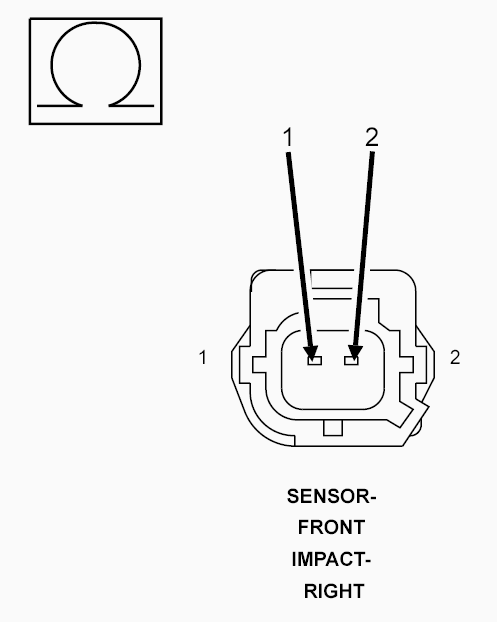

    Fig 3: Checking Front Right Impact Sensor Circuits For A Short Together
    GC0123496Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between the (R80) Front Right Impact Sensor Signal circuit and the (R82) Sensor Ground circuit at the Front Right Impact Sensor harness connector.

      Is the resistance below 100K Ohms?

      Yes

      • Repair the (R80) and (R82) Front Right Impact Sensor circuits shorted together.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      • Go To  5
  5. CHECK THE (R82) FRONT RIGHT IMPACT SENSOR GROUND CIRCUIT FOR AN OPEN OR HIGH RESISTANCE

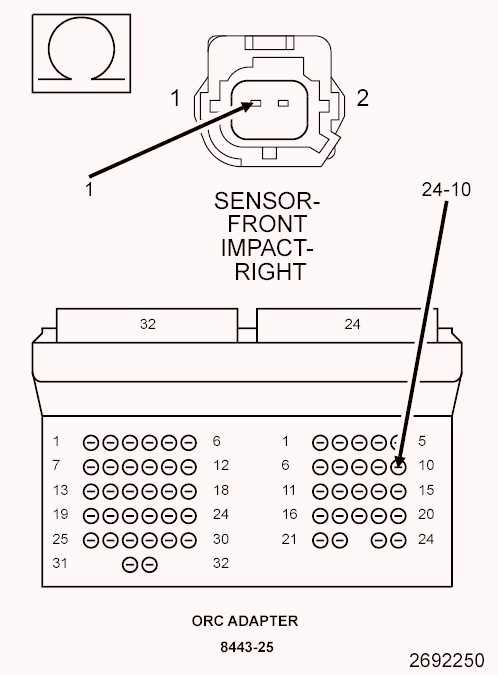

    Fig 4: Checking Front Right Impact Sensor Ground Circuit For An Open Or High Resistance
    GC0138909Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (R82) Front Right Impact Sensor Ground circuit between the Front Right Impact Sensor harness connector and the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter).

      Is the resistance below 1 Ohm?

      Yes

      • Go To  6

      No

      • Repair the (R82) Front Right Impact Sensor 2 Ground circuit for an open or high resistance.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  6. CHECK THE (R80) FRONT RIGHT IMPACT SENSOR SIGNAL CIRCUIT FOR AN OPEN OR HIGH RESISTANCE

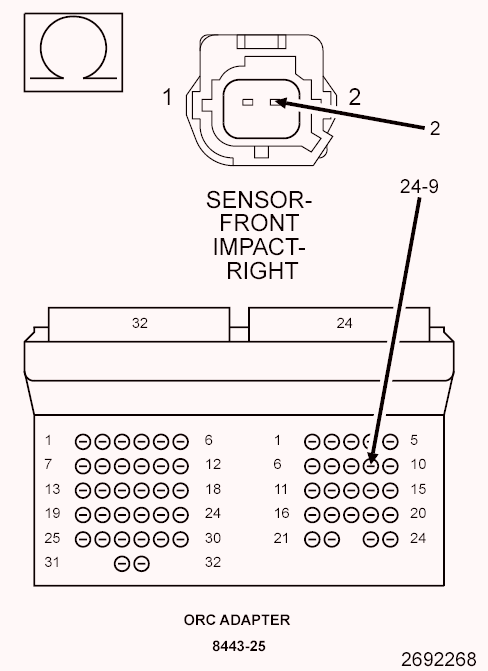

    Fig 5: Checking Front Right Impact Sensor Signal Circuit For An Open Or High Resistance
    GC0138910Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (R80) Front Right Impact Sensor Signal circuit between the Front Right Impact Sensor harness connector and the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter).

      Is the resistance below 1 Ohm?

      Yes

      • Go To  7

      No

      • Repair the (R80) Front Right Impact Sensor Signal circuit for an open or high resistance.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  7. CHECK OPERATION OF THE FRONT RIGHT IMPACT SENSOR
    1. Replace the Front Right Impact Sensor.
    2. Reconnect the vehicle body harness to the impact sensor.
    3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    4. Connect the scan tool to the Data Link Connector - use the most current software available.
    5. Use the scan tool and erase the stored codes in all airbag system modules.
    6. Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.
    7. Wait one minute, and read active codes and if there are none present read the stored codes.

      Did the active Front Right Impact Sensor DTC return?

      Yes

      • Go To  8

      No

      • Repair is complete.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  8. REPLACE THE OCCUPANT RESTRAINT CONTROLLER
    WARNING:

    Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    WARNING:

    If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.

    If there are no possible causes remaining, view repair.

    Repair

    • Replace the Occupant Restraint Controller in accordance with Service Instructions.
    • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
