Diagnostic Test

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
  1. DETERMINE ACTIVE OR STORED DTC
    NOTE:

    Make sure that the battery is fully charged.

    NOTE:

    The scan tool, SRS Load Tool Kit (special tool #8443A, SRS Load Tool), and DVOM are required to perform the following test.

    1. Turn the ignition on.

      Select ACTIVE or STORED DTC:

      ACTIVE DTC

      • Go To  2

      STORED DTC

  2. CHECK FOR SHORTED SQUIB CIRCUITS IN DRIVER AIRBAG
    Fig 1: Checking Squib Circuits In Driver Airbag For Short
    GC0099227Courtesy of CHRYSLER GROUP, LLC
    WARNING:

    Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    WARNING:

    Do not place an intact non-deployed airbag face down on a hard surface, the airbag propels into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Disconnect the Driver Airbag Squib connectors.
      NOTE:

      Check connectors - Clean and repair as necessary.

    2. Connect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and SRS Load Tool Jumper (special tool #8443-1, Jumpers, 2 Pin) to the Driver Airbag Squib connectors.
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    3. With the scan tool, read the active ORC DTCs.

      Does the scan tool display: B1B03-DRIVER AIRBAG SQUIB 1 CIRCUIT SHORTED TOGETHER?

      Yes

      • Go To  3

      No

      • Replace the Driver Airbag in accordance with the Service Information.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  3. CHECK THE CLOCKSPRING SQUIB CIRCUITS FOR A SHORT TOGETHER
    Fig 2: Identifying Clockspring Squib Connector For Short To Ground
    GC0099228Courtesy of CHRYSLER GROUP, LLC
    WARNING:

    Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Disconnect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and Jumper from the Driver Airbag Squib connectors.
    2. Disconnect the Clockspring C4 connector.
      NOTE:

      Check connectors - Clean and repair as necessary.

    3. Connect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and SRS Load Tool Jumper (special tool #8443-19, 4 Pin Jumper) to the Clockspring C4 connector.
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    4. With the scan tool, read the active ORC DTCs.

      Does the scan tool display: B1B03-DRIVER AIRBAG SQUIB 1 CIRCUIT SHORTED TOGETHER?

      Yes

      • Go To  4

      No

      • Replace the Clockspring in accordance with the Service Information.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  4. CHECK (R43) DRIVER SQUIB 1 LINE 2 CIRCUIT FOR A SHORT TO (R45) DRIVER SQUIB 1 LINE 1 CIRCUIT

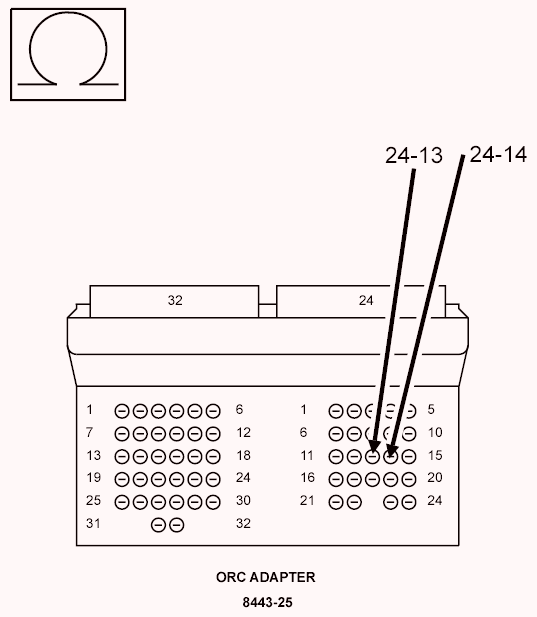

    Fig 3: Checking Driver Squib 1 Line 2 Circuit For Short To Driver Squib 1 Line 1 Circuit
    GC0138839Courtesy of CHRYSLER GROUP, LLC
    WARNING:

    Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Disconnect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and Jumper from the Clockspring connector.
    2. Disconnect the ORC connectors.
      NOTE:

      Check connectors - Clean and repair as necessary.

    3. Connect the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) to the ORC connectors.
    4. Measure the resistance between the (R43) Driver Squib 1 Line 2 circuit and the (R45) Driver Squib 1 Line 1 circuit at the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) cavities 24-13 and 24-14.

      Is the resistance below 10k Ohms?

      Yes

      • Repair the (R43) Driver Squib 1 Line 2 circuit for a short to the (R45) Driver Squib 1 Line 1 circuit.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .

      No

      WARNING:

      If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment. Failure to follow these instructions may result in possible serious or fatal injury.

      WARNING:

      Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

      • Replace the ORC in accordance with Service Information.
      • Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
