Diagnostic Test

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

DETERMINE ACTIVE OR STORED DTC
NOTE:
Make sure that the battery is fully charged.

NOTE:
The scan tool, SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and DVOM are required to perform the following test.
1. Turn the ignition on.
  Select ACTIVE or STORED DTC:

  ACTIVE DTC
  - Go To 2
  STORED DTC
  - Perform the AIRBAG SYSTEM INTERMITTENT TEST. Refer to STANDARD PROCEDURE .
CHECK FOR SHORTED SQUIB CIRCUITS IN DRIVER AIRBAG

Fig 1: Checking Squib Circuits In Driver Airbag For Short
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Driver Airbag Squib connectors.
  WARNING:
  Do not place an intact non-deployed airbag face down on a hard surface, the airbag propels into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury.

  NOTE:
  Check connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and SRS Load Tool Jumper (special tool #8443-1, Jumpers, 2 Pin) Jumper to the Driver Airbag Squib connectors.
  WARNING:
  Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTCs.
  Does the scan tool display: B1B01-DRIVER AIRBAG SQUIB 1 CIRCUIT HIGH?

  Yes
  - Go To 3
  No
  - Replace the Driver Airbag in accordance with the Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
CHECK CLOCKSPRING SQUIB CIRCUITS FOR A SHORT TO BATTERY

Fig 2: Identifying Clockspring Squib Connector For Short To Ground
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and Jumper from the Driver Airbag Squib connectors.
2. Disconnect the Clockspring C4 harness connector.
  NOTE:
  Check connectors - Clean and repair as necessary.
3. Connect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and SRS Load Tool Jumper (special tool #8443-19, 4 Pin Jumper) to the Clockspring C4 connector.
  WARNING:
  Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. With the scan tool, read the active ORC DTCs.
  Does the scan tool display: B1B01-DRIVER AIRBAG SQUIB 1 CIRCUIT HIGH?

  Yes
  - Go To 4
  No
  - Replace the Clockspring in accordance with the Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
CHECK (R43) DRIVER SQUIB 1 LINE 2 CIRCUIT AND (R45) DRIVER SQUIB 1 LINE 1 CIRCUIT FOR A SHORT TO BATTERY

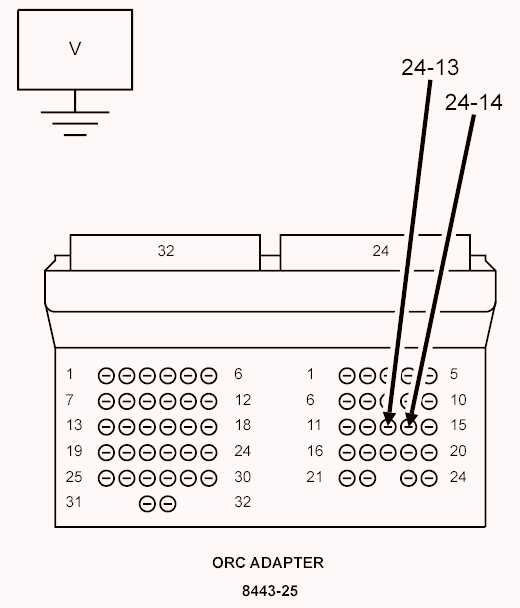

Fig 3: Checking Driver Squib 1 Line Circuits For Short To Battery
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and Jumper from the Clockspring C4 connector.
2. Disconnect the ORC connectors.
  NOTE:
  Check connectors - Clean and repair as necessary.
3. Connect the SRS Load Adaptor (special tool #8443-25, 56 Way ACM Adapter) to the ORC connectors.
  WARNING:
  Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. Measure the voltage of the (R43) Driver Squib 1 Line 2 circuit between the SRS Load Adaptor (special tool #8443-25, 56 Way ACM Adapter) cavity 24-13 and ground.
5. Measure the voltage of the (R45) Driver Squib 1 Line 1 circuit between the SRS Load Adaptor (special tool #8443-25, 56 Way ACM Adapter) cavity 24-14 and ground.
  Is there any voltage present for either measurement?

  Yes
  - Repair the Driver Squib 1 circuits with voltage present for a short to battery.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No

  WARNING:
  If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment. Failure to follow these instructions may result in possible serious or fatal injury.

  WARNING:
  Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
  - Replace the ORC in accordance with Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
