1500 - 3500 Standard Chassis

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

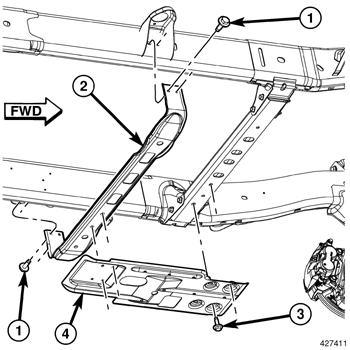

Fig 1: Skid Plate Crossmember, Skid Plate & Bolts
GC0088241Courtesy of CHRYSLER LLC
  1. Raise and support the vehicle. Refer to Hoisting , Standard Procedure .
  2. Support the skid plate (4) and remove the bolts (3).
  3. Remove the skid plate (4).
  4. Support the skid plate crossmember (2) and remove the bolts (1).
  5. Remove the skid plate crossmember (2).
