3500 - 5500 Heavy Duty - Cab Chassis

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

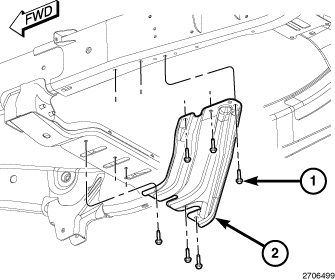

Fig 1: SKID PLATE
GC0108733Courtesy of CHRYSLER LLC
  1. Install the skid plate (2) and bolts (1).
  2. Tighten the bolts (1) to 37 N.m (27 ft. lbs.).
