PLATE, Skid, Front: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

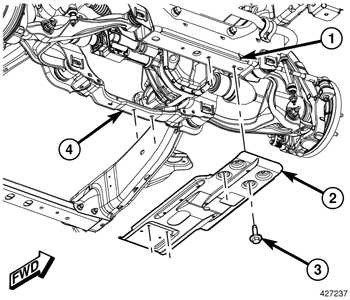

Fig 1: Removing/installing Front Skid Plate
GC0088239Courtesy of CHRYSLER LLC
  1. Raise and support the vehicle. Refer to Hoisting , Standard Procedure .
  2. Remove the bolts (3).
  3. Remove the skid plate (2).
