Diagnostic Test

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK IF THE DTC IS ACTIVE
    1. Ignition on, engine not running.
    2. With the scan tool, read TIPM DTCs.

      Does the scan tool display this DTC as Active?

      Yes

      • Go To  2

      No

      • Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  2. CHECK THE (T16) TRANSMISSION CONTROL OUTPUT CIRCUIT FOR A SHORT TO GROUND

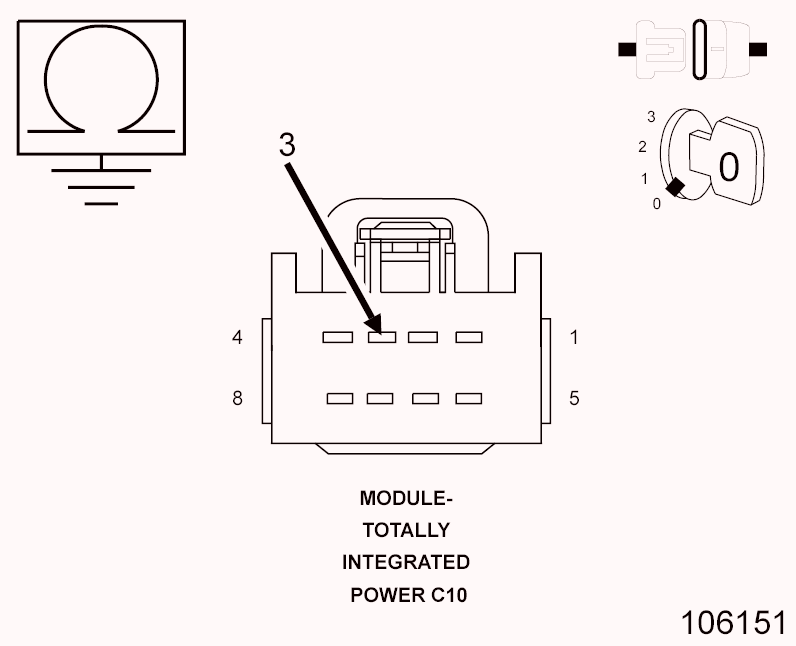

    Fig 1: Measuring Resistance Between Ground & Transmission Control Output Circuit
    GC0124194Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off to the lock position.
    2. Disconnect the TIPM C10 harness connector.
    3. Disconnect the PCM C1 harness connector.
    4. Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
    5. Disconnect the Line Pressure Sensor/Variable Force Solenoid Assembly harness connector (4-Speed Automatic Transmission).
    6. Measure the resistance between ground and the (T16) Transmission Control Output circuit.

      Is the resistance above 10k Ohms?

      Yes

      • Go To  3

      No

      • Repair the short to ground in the (T16) Transmission Control Output circuit.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  3. CHECK THE TIPM FOR CORRECT OPERATION
    1. Turn the ignition off.
    2. Reconnect the TIPM C10 harness connector.
    3. Ignition on, engine not running.
    4. With the scan tool, actuate the Transmission Relay system test.
    5. Using a 12-volt test light connected to ground, check the (T16) Transmission Control Output circuits.

      Does the test light illuminate brightly at the (T16) Transmission Control Output circuits?

      Yes

      • Go To  4

      No

      • Replace the Totally Integrated Power Module in accordance with the Service Information.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  4. CHECK THE TRANSMISSION SOLENOID/PRESSURE SWITCH ASSEMBLY FOR A SHORT
    1. Turn the ignition off.
    2. Reconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
    3. Ignition on, engine not running.
    4. With the scan tool, read TIPM DTCs.

      Does the scan tool display this DTC as Active?

      Yes

      • Replace the Transmission Solenoid/Pressure Switch Assembly in accordance with the Service Information.
      • Perform the appropriate TRANSMISSION VERIFICATION TEST. Refer to the appropriate Testing & Diagnostics article in Engine Performance .

      No

      • For vehicles with a 40TE Transmission, replace the Line Pressure Sensor/Variable Force Solenoid in accordance with the Service Information. Perform the 40/41TE TRANSMISSION VERIFICATION TEST. Refer to STANDARD PROCEDURE .
      • For vehicles with a 62TE Transmission, test complete.
