Section 486 (62TE Automatic Transmission (Service Information)): Description: Description: Notes
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

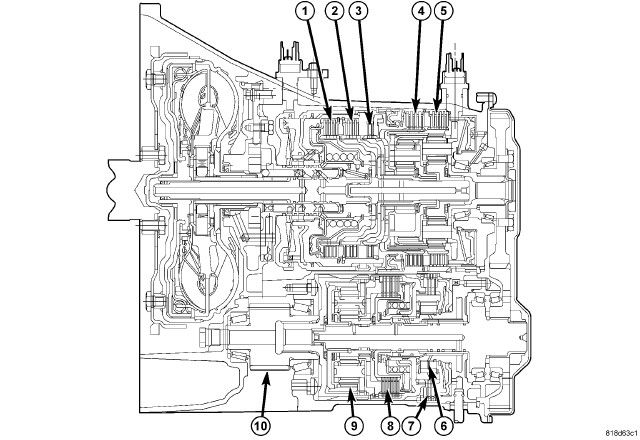

| 1 - Underdrive Clutch (UD) |
| 6 - Overrunning Clutch (ORC) |
| 2 -Overdrive Clutch (OD) |
| 7 - Low Clutch (LC) |
| 3 - Reverse Clutch (R) |
| 8 - Direct Clutch (DC) |
| 4 - 2/4 Clutch |
| 9 - Planetary Gear Set |
| 5 - L/R Clutch |
| 10 - Remote Pinion Gear |
The planetary gear train for the 62TE transaxle provides six forward gear ratios, including two fourth gear ratios. One reverse gear ratio is also provided.
