Seal, Differential: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

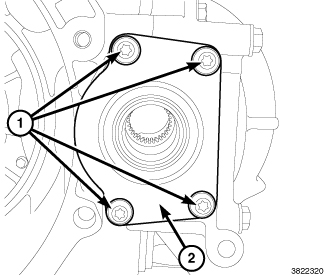

Fig 1: Transmission Extension Assembly
GC0147245Courtesy of CHRYSLER GROUP, LLC
NOTE:

Right side shown in illustration, left side similar.

  1. Remove the half shaft. Refer to REMOVAL .
    NOTE:

    Some transaxle fluid may spill when the transmission extension assembly (2) is removed.

  2. Remove the transmission extension assembly (2) bolts (six bolts for left side, four bolts for right side) and remove the assembly (1).
