Mechanism, Brake Transmission Shift Interlock: Installation: Installation
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

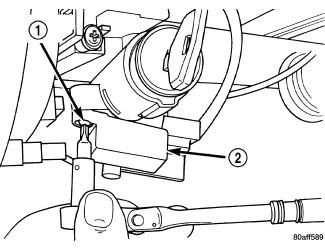

| 1 - MOUNTING SCREW |
| 2 - INTERLOCK MECHANISM |
- Position the interlock housing at steering column. Install the interlock mechanism to steering column attaching screws (1). Tighten screws to 3 N.m (21 in. lbs.).
- Snap the interlock cable into the housing.
- Install the lower column covers, shrouds and knee bolster.
