Tube, Connecting: Removal: Removal
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the engine cover.

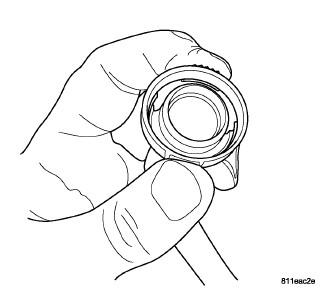

- To release the connecting tube, squeeze the quick connect fitting as shown in illustration.

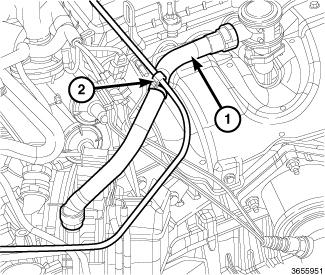

- Disengage the purge line retainer (2) from the connecting tube (1).
- Disconnect and remove the connecting tube (1) from the air pump and the one way check valve.
- The connecting tube O-rings can be reused if not damaged.
