LAMP, Storage Box: Removal: Switch
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove the storage bin from the vehicle. Refer to BOX, Pickup , Removal .

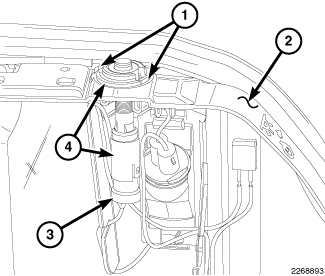

- Disconnect the storage bin wire harness connector (3) from the ajar switch (4) connector receptacle.
- From the top of the rear storage bin ledge (2), squeeze the two ajar switch latch tabs (1) together and pull the switch upward out of the mounting hole.
- Remove the ajar switch from the storage bin.
